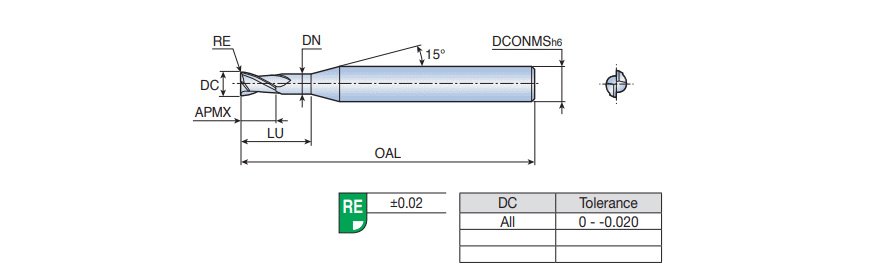

| Cutting Diameter (DC) | 1.5 mm | Usable Length (LU) | 12 mm |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 2.2 mm | Application | | Drill Mill | Helical Interpolation | Rampdown | Shouldering | Slotting | Solid Carbide End Mills | Step down machining | |
| Overall Length (OAL) | 50 mm | Corner Radius (RE) | 0.15 mm |
| Cutting Edge Material | Carbide | Grade | TTD620 |
| Coating | Diamond | Neck Diameter (DN) | 1.4 |
| Flute Count (NOF) | 0 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Shank Type | Round | Unit | M |
| End Shape | Corner Radius |
Product Features
| Family Description | Solid Carbide Endmills for graphite machining | FamilyName | DMR 2 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0000
Name
Square & Corner Radius End Mills
FamilyName
DMR 2
BrandName
Taegutec
