| Cutting Width (CW) | 1.25 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Inserts | Parting | Y Axis Groove Turn for Swiss | |
| Corner Radius (RE) | 0.1 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 3 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN+TiN | Unit | M |
| Grade | TT9080 |
Product Features

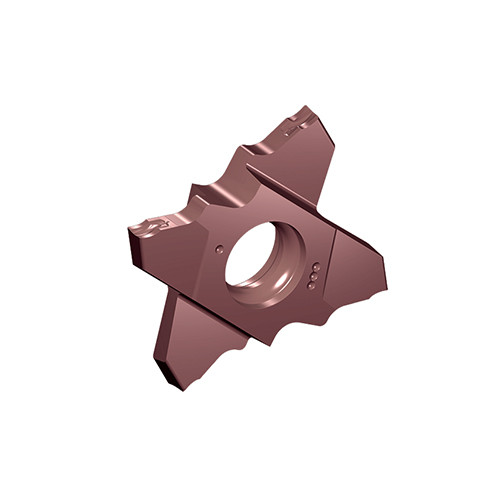

| Family Description | 4 cutting edge inserts with J-chip breaker for parting, grooving and next to the shoulder machining of soft materials in swiss turn | FamilyName | TQJ 20-R/L |
| Remarks | For parting and grooving range, click on "More Info". | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0086
Name
Parting Off Indexable Inserts
FamilyName
TQJ 20-R/L
BrandName
Taegutec
