DNMG 150616 MGP TT8115B

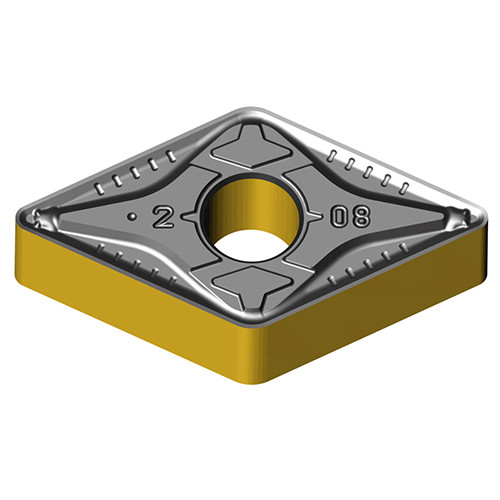

Negative 55° Rhombic inserts for medium machining of steels with reliable cutting edge and wide range of chip control
Price: Log in For Price
| Applicable Material | | Steel | | Grade | TT8115B |
| Application | | Ext 107.5° App 55° Diamond | Ext 62.5° App 55° Diamond | Ext 93° App 55°Diamond | Inserts | Int 100° App 70° Diamond | Int 107.5° App 55° Diamond | Int 93° App 55° Diamond | Int 93° App 70° Diamond | Int 93° App Back 55° Diamond | Int 95° App 55° Diamond | | Min D.O.C. | 0.8 mm |

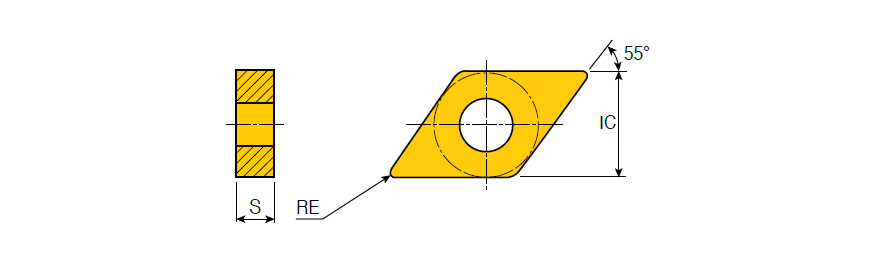

| Corner Radius (RE) | 1.6 mm | Depth of Cut Maximum (APMX) | 4 mm |
| Cutting Edge Length (L) | 15.5 mm | Min. Turning Feed (ft(min)) | 0.2 mm/rev |
| Insert Thickness (S) | 6.35 mm | Max. Turning Feed (ft(max)) | 0.55 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
Product Features
| Family Description | Negative 55° Rhombic inserts for medium machining of steels with reliable cutting edge and wide range of chip control | FamilyName | DNMG-MGP. |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0175
Name
Turning Indexable Inserts
FamilyName
DNMG-MGP.
BrandName
Taegutec
