| Thread Size | 5/16 | Coating | AlTiN |
| Threads per Inch (TPI) | 18 | Application | | Internal Thread Milling | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Cutting Diameter (DC) | 6 mm | Cutting Edge Material | Carbide |
| Functional Length (LF) | 17 mm | Measurement Type | Metric |
| Overall Length (OAL) | 58 mm | Grade | TT1040 |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Shank Type | Round | Unit | M |
Product Features

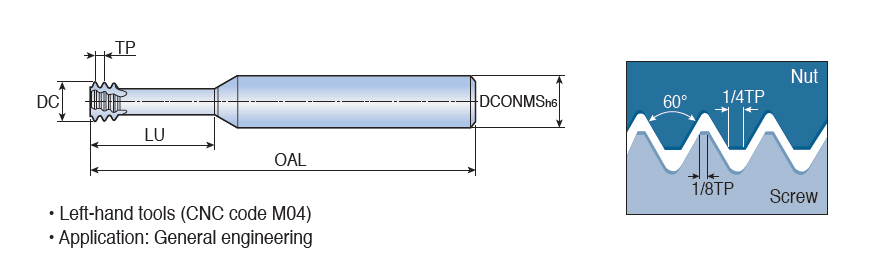

| Family Description | Short solid carbide threading end mills for small diameter internal UN threads of hardened steel with left handed flutes & short threading contact (CNC code M04) | COO | ISRAEL |
Shipping Info
Weight per item
0.0232
