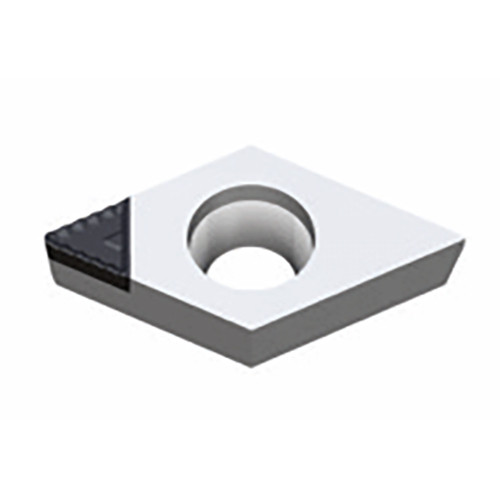

DCGT 070202 CB TD1020
Positive 55° Rhombic inserts with Serrated PCD cutting edge for maximum chip control & low cutting force
Price: Log in For Price
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Min D.O.C. | 0.5 mm |
| Application | | Ext 62.5° App 55° Diamond | Ext 93° App 55°Diamond | Ext 93° App Shift 55° Diamond | Ext 93° App Sleeve 55° Diamond | Inserts | Int 100° App 70° Diamond | Int 107.5° App 55° Diamond | Int 93° App 55° Diamond | Int 93° App 70° Diamond | Int 93° App Back 55° Diamond | Tools for Swiss Machines | Y Axis holders | | Depth of Cut Maximum (APMX) | 1.5 mm |

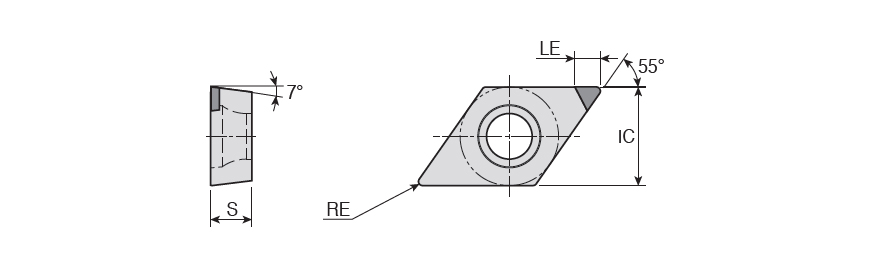

| Corner Radius (RE) | 0.2 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Cutting Edge Length (L) | 7.75 mm | Max. Turning Feed (ft(max)) | 0.5 mm/rev |
| Insert Thickness (S) | 2.38 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 6.35 mm | Body Material | Carbide |
| Cutting Edge Material | PCD | Unit | M |
| Grade | TD1020 |
Product Features
| Family Description | Positive 55° Rhombic inserts with Serrated PCD cutting edge for maximum chip control & low cutting force | FamilyName | DCGT-CB(PCD) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0100
Name
Turning Indexable Inserts
FamilyName
DCGT-CB(PCD)
BrandName
Taegutec
