BLMV 0603R-MM TT3520

V-shaped double-sided inserts for high feed milling

Item # TTK6262356

Brand: Taegutec

Mfr#: 6262356

Applicable Material	\| Stainless Steel \| Super-Alloys / Titanium \|	Cutting Edge Material	Carbide
Application	\| Facing \| Helical Interpolation \| High Feed Milling \| Inserts \| Profiling \| Rampdown \| Step down machining \|	Minimum Feed per Tooth (fz(min))	0.3 mm/tooth

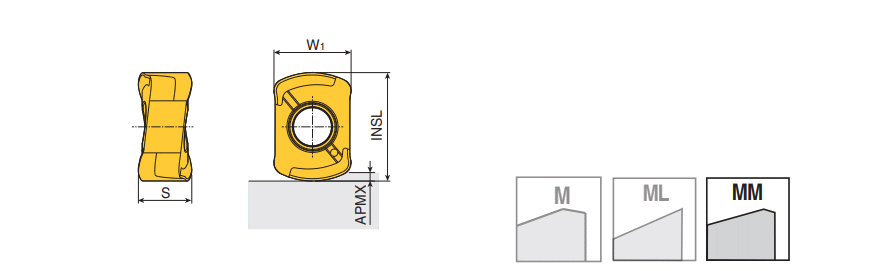

Depth of Cut Maximum (APMX)	1 mm	Number of Cutting Edges	8
Insert Thickness (S)	4.43 mm	Measurement Type	Metric
Coating	TiCN/Al2O3/TiN	Body Material	Carbide
Grade	TT3520	Unit	M
Maximum Feed per Tooth (fz(max))	1.2 mm/tooth

Product Features

Family Description	V-shaped double-sided inserts for high feed milling	FamilyName	BLMV 06-MM
COO	S.KOREA	BrandName	Taegutec

Weight per item

0.0032

Name

Milling Indexable Inserts

FamilyName

BLMV 06-MM

BrandName

Taegutec
