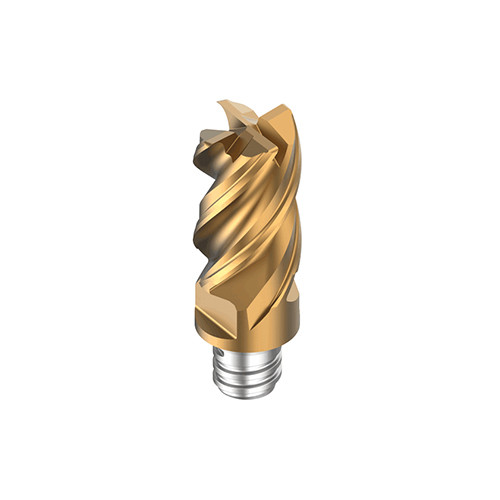

MXES120H09R05I04S08 TT5523
4 flute, unequal space & variable helix cutting edges
Price: Log in For Price

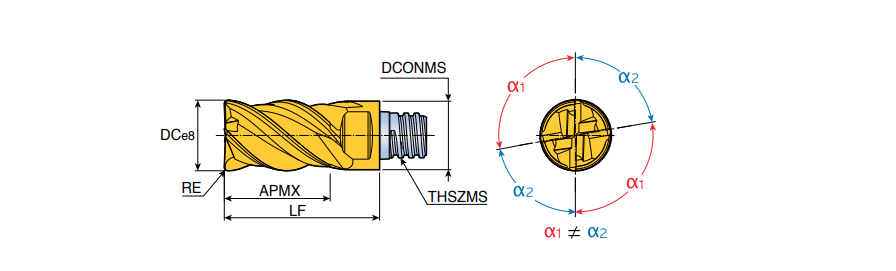

| Application | | Drill Mill | Helical Interpolation | Rampdown | Shouldering | Slotting | Solid Carbide End Mills | Step down machining | | Flute Helix Angle (FHA) | 45 Degrees |
| Cutting Diameter (DC) | 12 mm | Grade | TT5523 |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Coating | AlTiN |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Corner Radius (RE) | 0.5 mm | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | S08 | Protruding Length (LPR) | 16.5 mm |
| Depth of Cut Maximum (APMX) | 9 mm | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 11.7 mm | Unit | M |
| Functional Length (LF) | 16.5 mm |
Product Features
| Family Description | 4 flute, unequal space & variable helix cutting edges | FamilyName | MXES-R |
| Remarks | Wrench should be ordered separately | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0575
Name
Solid End Mill Heads
FamilyName
MXES-R
BrandName
Taegutec
