MXDP324L04B30-02S08 TT5523

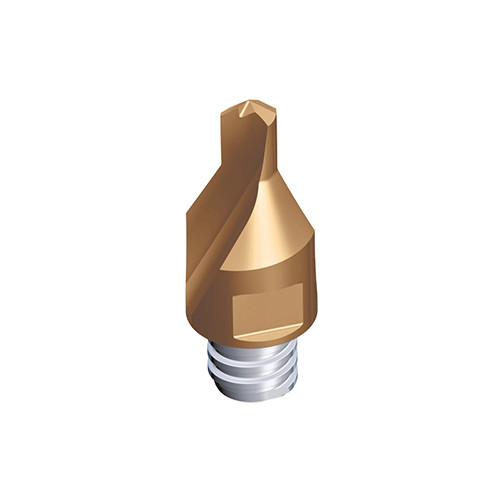

Interchangeable solid carbide Centering drill heads with 2 flute
Price: Log in For Price
| Application | | Drill Mill | Solid Carbide End Mills | | Coating | AlTiN |
| Cutting Diameter (DC) | 3.24 mm | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Flute Count (NOF) | 2 | Point Length (PL) | 0.83 mm |
| Connection Thread Nominal Size Machine Side (THSZMS) | S08 | Protruding Length (LPR) | 23 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Body Material | Carbide |
| Grade | TT5523 | Unit | M |
Product Features
| Family Description | Interchangeable solid carbide Centering drill heads with 2 flute | FamilyName | MXDP-02 |
| Remarks | Wrench should be ordered separately SDL: Step diameter length | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0520
Name
Solid End Mill Heads
FamilyName
MXDP-02
BrandName
Taegutec
