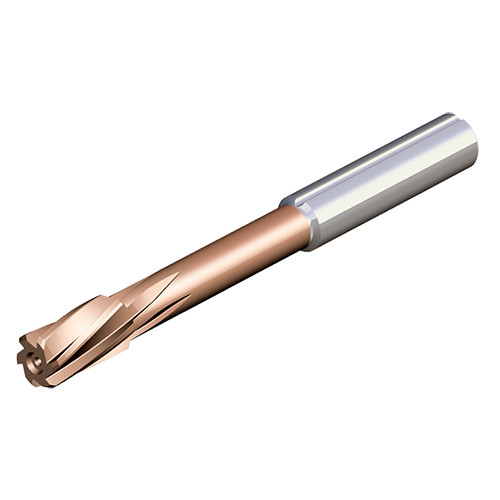

TS-L0300-NS TT5040
Solid carbide reamers with left-handed spiral flute of DIN1420 for through hole
Price: Log in For Price

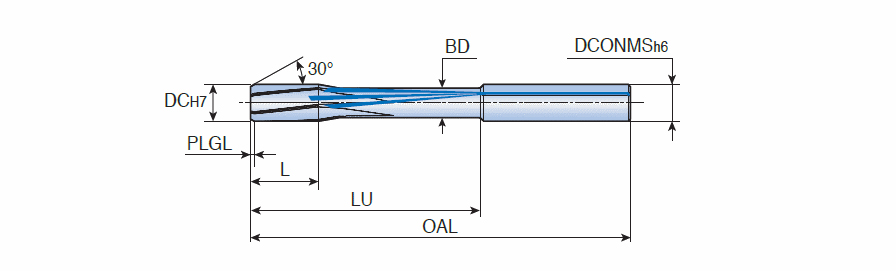

| Cutting Diameter (DC) | 3 mm | Grade | TT5040 |
| Application | | Through Hole | Tools for Swiss Machines | | Cutting Edge Material | Carbide |
| Usable Length (LU) | 31 mm | Measurement Type | Metric |
| Cutting Edge Length (L) | 12 mm | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Body Diameter (BD) | 2.2 mm |
| Flute Count (NOF) | 4 | Unit | M |
| Overall Length (OAL) | 60 mm |
Product Features
| Family Description | Solid carbide reamers with left-handed spiral flute of DIN1420 for through hole | COO | ITALY |
| Remarks | Special diameters are available on request |
Shipping Info
Weight per item
0.0060
