TS-S1050-NS TT5040

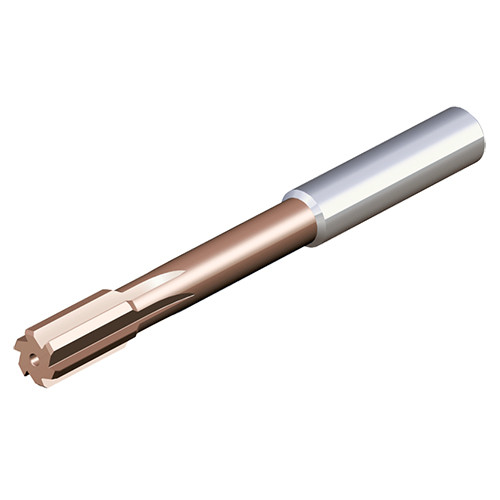

Solid carbide reamers with straight flute of DIN1420 and internal coolant channel for blind hole
Price: Log in For Price

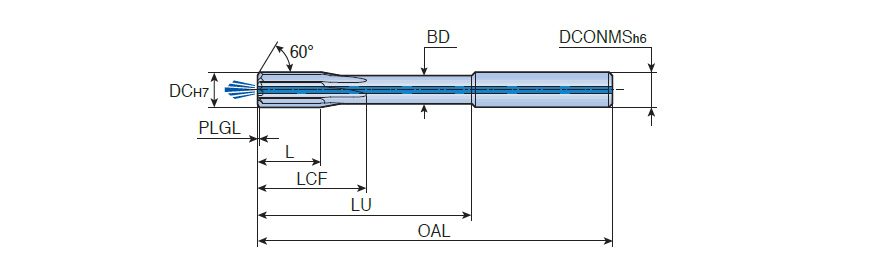

| Cutting Diameter (DC) | 10.5 mm | Cutting Edge Material | Carbide |
| Application | | Blind Hole | Tools for Swiss Machines | | Length Chip Flute (LCF) | 23 mm |
| Usable Length (LU) | 85 mm | Measurement Type | Metric |
| Cutting Edge Length (L) | 18 mm | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Length Group | 0xD |
| Flute Count (NOF) | 6 | Body Diameter (BD) | 8.4 mm |
| Overall Length (OAL) | 130 mm | Unit | M |
| Grade | TT5040 |
Product Features
| Family Description | Solid carbide reamers with straight flute of DIN1420 and internal coolant channel for blind hole | COO | ITALY |
| Remarks | Special diameters are available on request |
Shipping Info
Weight per item
0.1500
