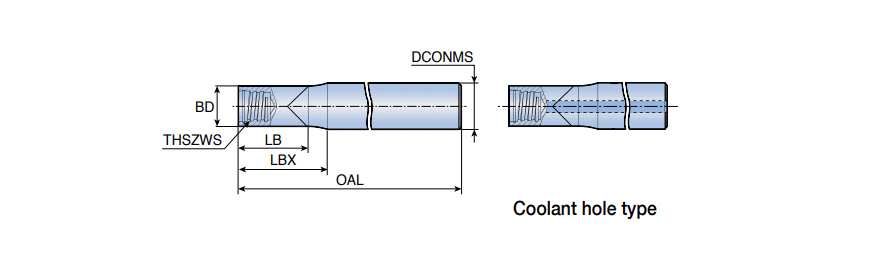

| Connection Thread Nominal Size Workpiece Side (THSZWS) | S06 | Body Diameter (BD) | 9.6 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Body Length (LB) | 38.5 mm |
| Material | Carbide | Measurement Type | Metric |
| Overall Length (OAL) | 90 mm | Body Material | Steel |
| Body Length Maximum (LBX) | 40 mm | Unit | M |
| Shank Type | Round |
Product Features
| Family Description | Carbide shanks with step neck & internal coolant hole | FamilyName | MXSSD-C |
| COO | ISRAEL | BrandName | Taegutec |
Shipping Info
Weight per item
0.0880
Name

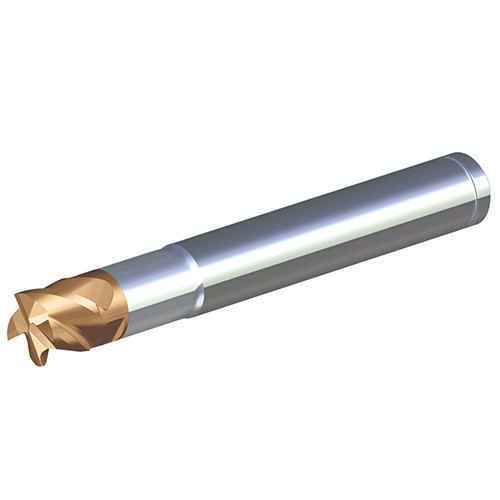

Solid End Mill Shanks
FamilyName
MXSSD-C
BrandName
Taegutec
