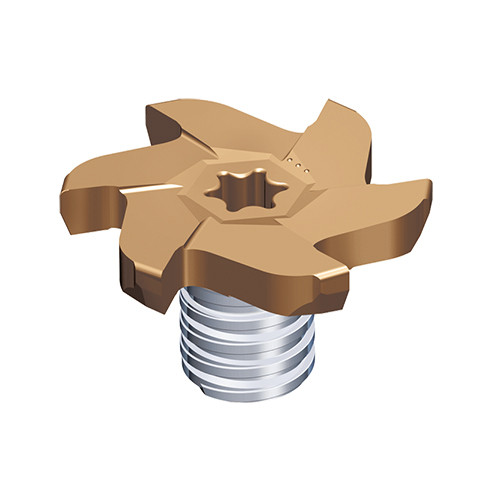

TST277W10R020-6S10 TT5543
Interchangeable solid carbide small dia Slot milling heads for width 0.76 to 10 mm with 4 & 6 flute
Price: Log in For Price
| Application | | Internal Groove Milling | Side Slotting | Solid Carbide End Mills | T Slotting | | Grade | TT5543 |
| Cutting Diameter (DC) | 27.7 mm | Coating | AlTiN |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Measurement Type | Metric |
| Flute Count (NOF) | 6 | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.2 mm | Minimum Bore Diameter (DMIN) | 28 mm |
| Connection Thread Nominal Size Machine Side (THSZMS) | S10 | Protruding Length (LPR) | 10.55 mm |
| Cutting Depth Maximum (CDX) | 6 mm | Body Material | Carbide |
| Cutting Width (CW) | 10 mm | Unit | M |
| Flute Helix Angle (FHA) | 0 Degrees |
Product Features
| Family Description | Interchangeable solid carbide small dia Slot milling heads for width 0.76 to 10 mm with 4 & 6 flute | FamilyName | TST-4/6 |
| Remarks | Wrench should be ordered separately | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0800
Name
Solid End Mill Heads
FamilyName
TST-4/6
BrandName
Taegutec
