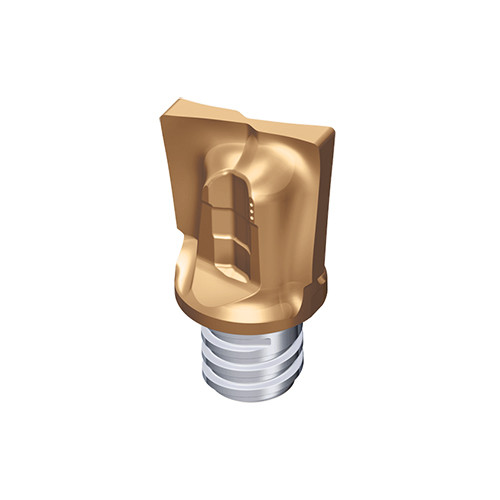

MXGC080L08R04-02S05 TT5523
Interchangeable solid carbide heads with 2 flute for Counter boring
Price: Log in For Price

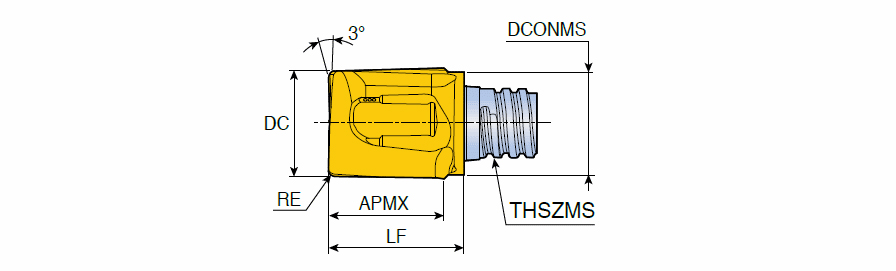

| Application | | Counter Boring | Drill Mill | Helical Interpolation | Rampdown | Shouldering | Slotting | Solid Carbide End Mills | | Flute Helix Angle (FHA) | 10 Degrees |
| Cutting Diameter (DC) | 8 mm | Grade | TT5523 |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Coating | AlTiN |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Corner Radius (RE) | 0.4 mm | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | S05 | Protruding Length (LPR) | 10 mm |
| Depth of Cut Maximum (APMX) | 7.7 mm | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 7.6 mm | Unit | M |
| Functional Length (LF) | 10 mm |
Product Features
| Family Description | Interchangeable solid carbide heads with 2 flute for Counter boring | FamilyName | MXGC-02 |
| Remarks | Wrench should be ordered separately | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0125
Name
Solid End Mill Heads
FamilyName
MXGC-02
BrandName
Taegutec
