TPH654C M16X2.0
HSSE Right-hand 40 spiral flute,machine taps for ISO threads, according to DIN 13. (Form C:2-3 threads chamfer)
Price: Log in For Price

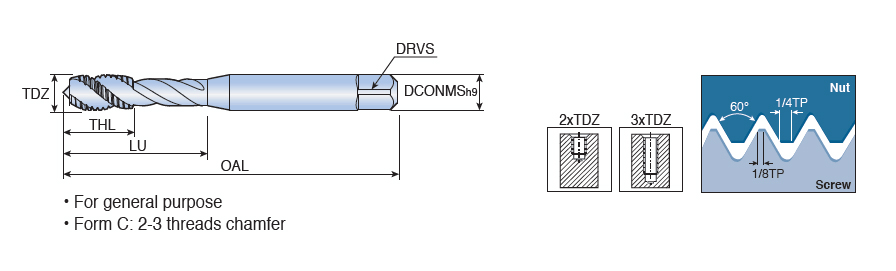

| Thread Diameter Size (TDZ) | M16 mm | Flute Helix Angle (FHA) | 40 Degrees |
| Thread Pitch (TP) | 2 mm | Square Size | 9 mm |
| Overall Length (OAL) | 110 mm | Measurement Type | Metric |
| Thread Cutting Part Length (THL) | 20 mm | Application | | Deep hole with short thread | Taps for deep blind hole | Taps for short blind hole | |
| Usable Length (LU) | - | Body Material | HSS |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Unit | M |
Product Features
| Family Description | HSSE Right-hand 40 spiral flute,machine taps for ISO threads, according to DIN 13. (Form C:2-3 threads chamfer) | COO | HUNGARY |
Shipping Info
Weight per item
0.0940
