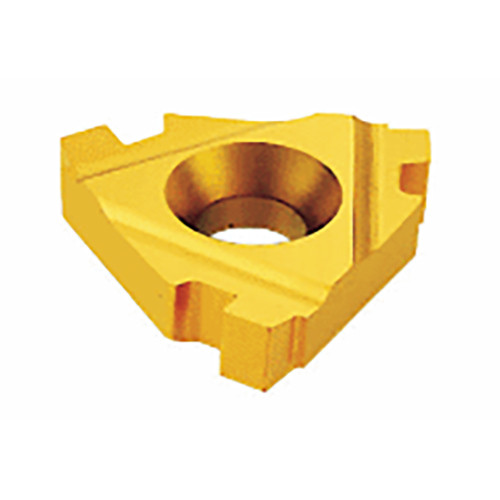

22ER 5 BUT 0.75 TT9030
External BUT - oil thread threading inserts for Buttress casing
Price: Log in For Price

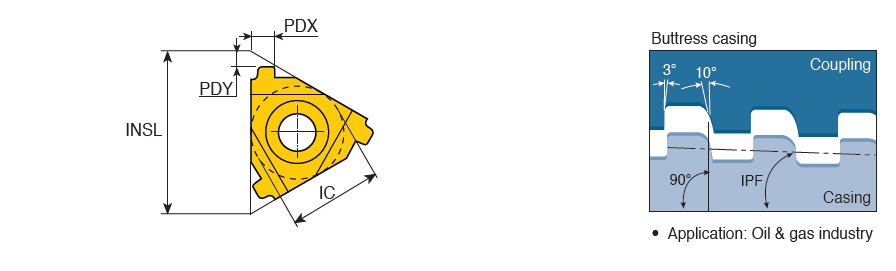

| Inscribed Circle Diameter (IC) | 12.7 mm | Application | | External Threading | |
| Insert Length (INSL) | 22 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 5 | Measurement Type | Metric |
| Grade | TT9030 | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | External BUT - oil thread threading inserts for Buttress casing | FamilyName | ER/L-BUT |
| Remarks | ANSI B1.9 1973 class 2 | BrandName | Taegutec |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0100
Name
Laydown Threading Indexable Inserts
FamilyName
ER/L-BUT
BrandName
Taegutec
