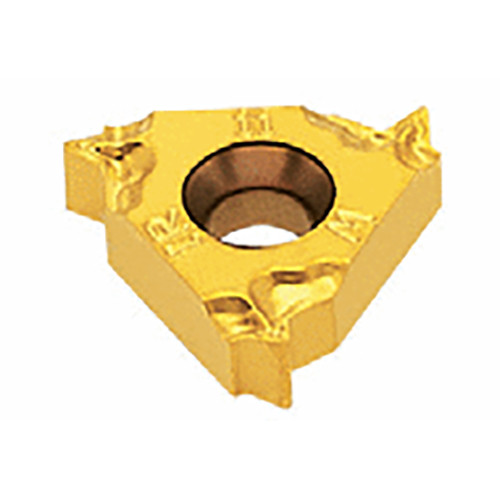

08IR 19 W TT8010
Internal Whitworth full profile (BSW, BSF, BSP) threading inserts
Price: Log in For Price

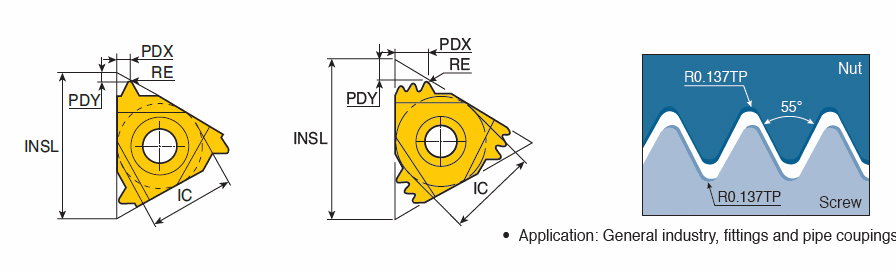

| Inscribed Circle Diameter (IC) | 4.76 mm | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 8 mm | Application | | Internal Threading | |
| Threads per Inch (TPI) | 19 Threads/ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.15 mm | Measurement Type | Metric |
| Grade | TT8010 | Body Material | Carbide |
| Coating | TiN | Unit | M |
Product Features
| Family Description | Internal Whitworth full profile (BSW, BSF, BSP) threading inserts | FamilyName | IR/L-W |
| Remarks | Tolerance: Medium class | BrandName | Taegutec |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0038
Name
Laydown Threading Indexable Inserts
FamilyName
IR/L-W
BrandName
Taegutec
