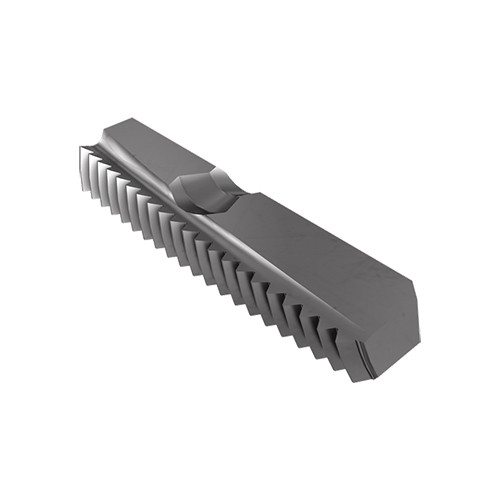

TMTH 45 I 6 UN TT9030
Helical thread milling inserts for American (UN, UNC, UNF, UNEF, UNS) full profile threads. Application: general applications
Price: Log in For Price

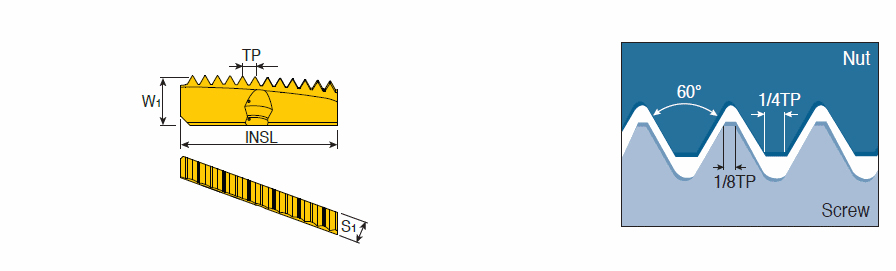

| Threads per Inch (TPI) | 6 | Thread Designation Outside (THOD) | >= 2 1/4 |
| Insert Length (INSL) | 37 mm | Cutting Edge Material | Carbide |
| Insert Width (W1) | 11.9 mm | Coating | TiAlN |
| Insert Thickness Total (S1) | 5 mm | Measurement Type | Metric |
| Application | | Internal Thread Milling | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Unit | M |
| Grade | TT9030 |
Product Features
| Family Description | Helical thread milling inserts for American (UN, UNC, UNF, UNEF, UNS) full profile threads. Application: general applications | COO | ISRAEL |
Shipping Info
Weight per item
0.0000
