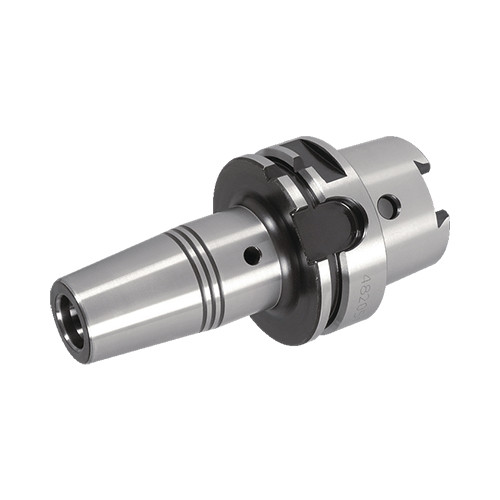

HSK A 63 SRKIN 8X80
Thermal shrinking chucks with HSK DIN 69893 form A taper shanks for solid carbide and steel shank tools
Price: Log in For Price

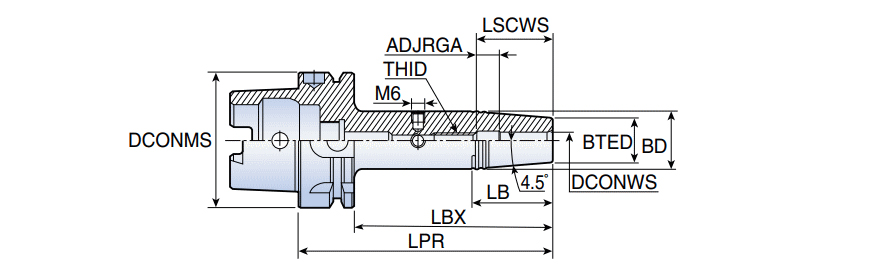

| Connection Diameter Machine Side (DCONMS) | 63 mm | Thread Designation Inside (THID) | M6 |
| Connection Diameter Workpiece Side (DCONWS) | 8 mm | Clamping Length Workpiece Side (LSCWS) | 36 mm |
| Shank Size (SS) | 63 mm | Usable Length (LU) | 80 mm |
| Body Length (LB) | 38 mm | Measurement Type | Metric |
| Body Diameter_2 (BD_2) | 27 mm | Body Material | Steel |
| Overall Length (OAL) | 112 mm | Unit | M |
| Application | | HSK DIN 69893 | |
Product Features
| Family Description | Thermal shrinking chucks with HSK DIN 69893 form A taper shanks for solid carbide and steel shank tools | FamilyName | HSK A-SRKIN |
| Remarks | Use only inductive heating device for T SHRINK holders | BrandName | Taegutec |
| COO | ISRAEL |
Shipping Info
Weight per item
0.8920
Name
Shrink Fit Holders
FamilyName
HSK A-SRKIN
BrandName
Taegutec
Related Documentation
