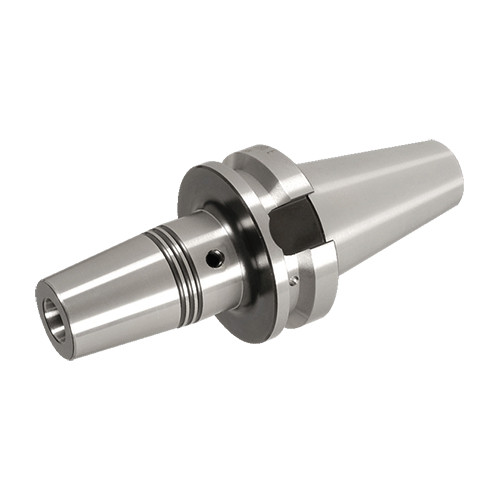

BT40 SRKIN 8X90
Thermal shrinking chucks with BT MAS-403 form AD taper shanks for solid carbide & steel shank tools
Price: Log in For Price

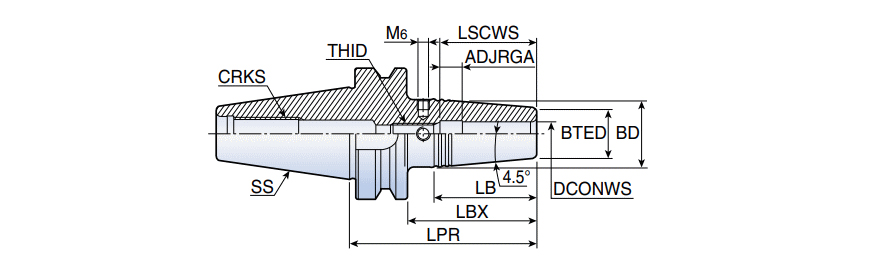

| Connection Diameter Workpiece Side (DCONWS) | 8 mm | Clamping Length Workpiece Side (LSCWS) | 36 mm |
| Shank Size (SS) | 40 mm | Shank Length (LS) | 65.4 mm |
| Body Length (LB) | 38 mm | Usable Length (LU) | 90 mm |
| Body Diameter_2 (BD_2) | 21 mm | Measurement Type | Metric |
| Application | | BT MAS 403 | | Body Material | Steel |
| Thread Designation Inside (THID) | M6 | Unit | M |
Product Features
| Family Description | Thermal shrinking chucks with BT MAS-403 form AD taper shanks for solid carbide & steel shank tools | FamilyName | BT-SRKIN |
| COO | ISRAEL | BrandName | Taegutec |
Shipping Info
Weight per item
1.2250
Name
Shrink Fit Holders
FamilyName
BT-SRKIN
BrandName
Taegutec
