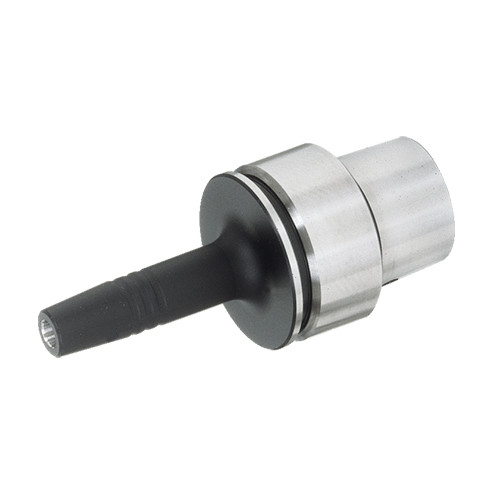

HSK E 40 SRK 4X 45
Thermal shrinking chucks with HSK DIN 69893 form E taper shanks for solid carbide tools
Price: Log in For Price

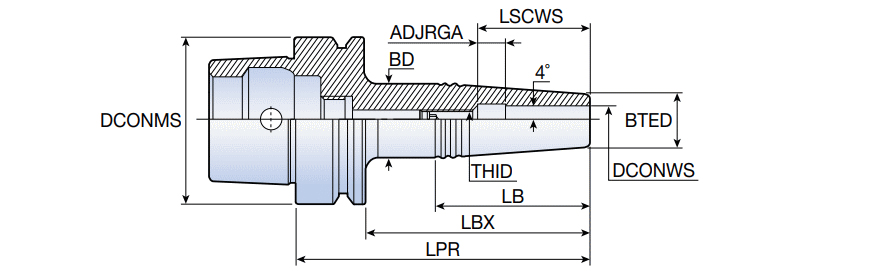

| Connection Diameter Workpiece Side (DCONWS) | 4 mm | Clamping Length Workpiece Side (LSCWS) | 18 mm |
| Shank Size (SS) | 40 mm | Usable Length (LU) | 65 mm |
| Body Length (LB) | 35 mm | Measurement Type | Metric |
| Body Diameter_2 (BD_2) | 10 mm | Body Material | Steel |
| Application | | HSK DIN 69893 | | Unit | M |
| Thread Designation Inside (THID) | M5 |
Product Features
| Family Description | Thermal shrinking chucks with HSK DIN 69893 form E taper shanks for solid carbide tools | FamilyName | HSK E-SRK |
| COO | ISRAEL | BrandName | Taegutec |
Shipping Info
Weight per item
0.2900
Name
Shrink Fit Holders
FamilyName
HSK E-SRK
BrandName
Taegutec
