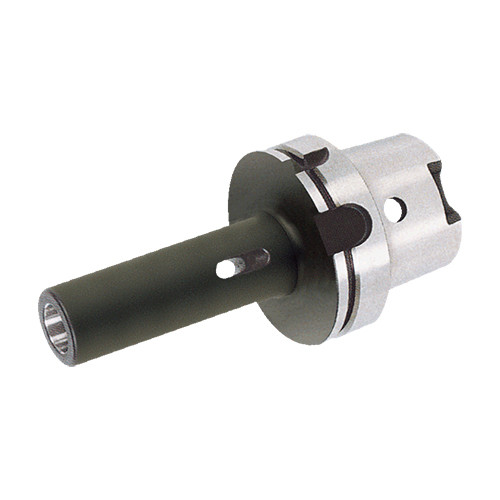

HSK A 63 MT1X110
DIN 6383 / DIN 228-2 form D tang Morse taper adapter with HSK DIN 69893 form A taper shanks
Price: Log in For Price

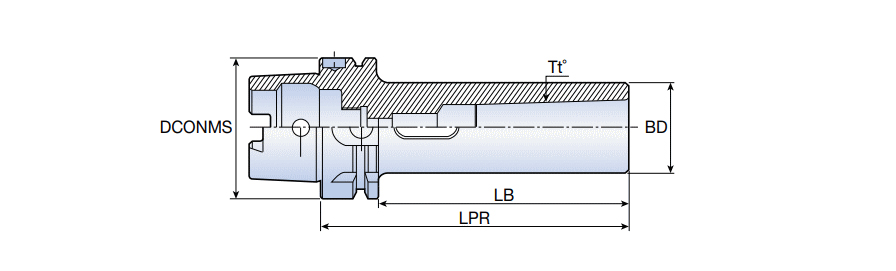

| Body Half Taper Angle (BHTA) | MT1 Degrees | Connection Diameter Workpiece Side (DCONWS) | 25 mm |
| Shank Size (SS) | 63 mm | Functional Length (LF) | 110 mm |
| Measurement Type | Metric | Body Material | Steel |
| Application | | Morse Taper | | Unit | M |
| Protruding Length (LPR) | 84 mm |
Product Features
| Family Description | DIN 6383 / DIN 228-2 form D tang Morse taper adapter with HSK DIN 69893 form A taper shanks | FamilyName | HSK A-MT |
| COO | ITALY | BrandName | Taegutec |
Shipping Info
Weight per item
0.9900
Name
Morse Taper Adapters
FamilyName
HSK A-MT
BrandName
Taegutec
