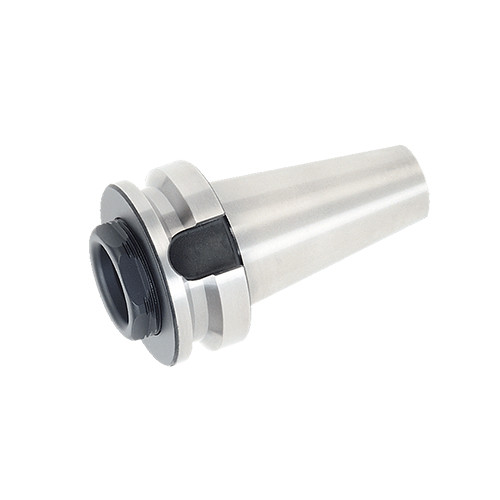

BT50 ER 32 SHORT
Short ER collet chucks with BT MAS-403 form AD taper shanks
Price: Log in For Price
| Connection Size (CSI) | ER32 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Body Diameter (BD) | 40 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Body Length Maximum (LBX) | 47.5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Connection Diameter Workpiece Side (DCONWS) | 0 mm |
| Connection Thread Nominal Size Machine Side (THSZMS) | M22X1.5 | Body Material | Steel |
| Application | | BT MAS 403 | | Unit | M |
| Nose Length | 9.5 mm |
Product Features
| Family Description | Short ER collet chucks with BT MAS-403 form AD taper shanks | FamilyName | BT-ER-SHORT |
| Remarks | Add B for coolant through flange | BrandName | Taegutec |
| COO | TURKEY |
Shipping Info
Weight per item
3.5450
Name
Collet Chucks
FamilyName
BT-ER-SHORT
BrandName
Taegutec
