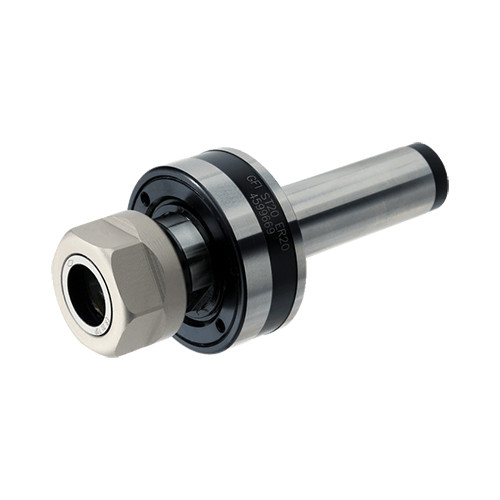

GFI ST20 ER20
Floating reamer DIN 6499 ER collet chucks with straight shanks
Price: Log in For Price

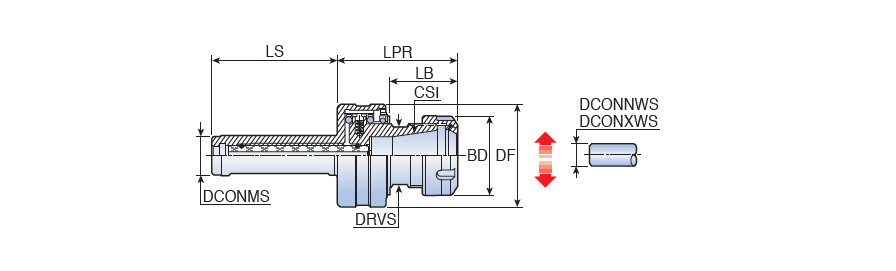

| Connection Size (CSI) | ER20 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
| Body Diameter (BD) | 50 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 13 mm |
| Body Length Maximum (LBX) | 55.5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Connection Diameter Workpiece Side (DCONWS) | 0 mm |
| Shank Length (LS) | 65 mm | Body Material | Steel |
| Application | | Reamer Collet Chucks | | Unit | M |
| Nose Length | 34.5 mm |
Product Features
| Family Description | Floating reamer DIN 6499 ER collet chucks with straight shanks | FamilyName | GFI ST-ER (Reamer Chuck) |
| Remarks | Max. 2,000RPM | BrandName | Taegutec |
| COO | ISRAEL |
Shipping Info
Weight per item
0.5600
Name
Collet Chucks
FamilyName
GFI ST-ER (Reamer Chuck)
BrandName
Taegutec
