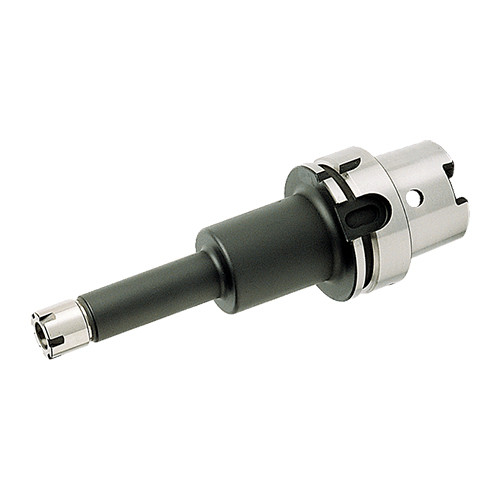

HSK A 50 ER20X100 M
DIN 6499 ER mini collet chucks with HSK DIN 69893 form A taper shanks
Price: Log in For Price

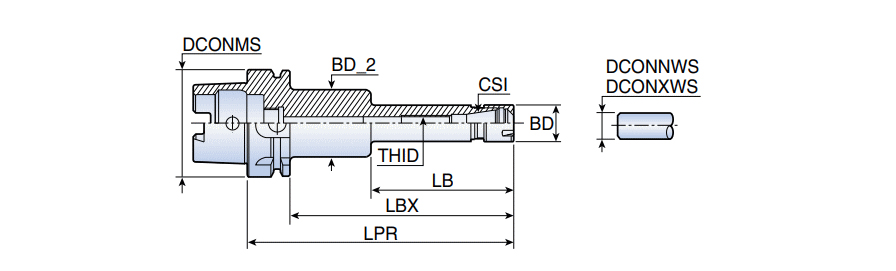

| Connection Size (CSI) | ER20 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
| Body Diameter (BD) | 28 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 13 mm |
| Body Length Maximum (LBX) | 100 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Connection Diameter Workpiece Side (DCONWS) | 0 mm |
| Connection Thread Nominal Size Machine Side (THSZMS) | M12 | Body Material | Steel |
| Application | | HSK DIN 69893 | | Unit | M |
| Nose Length | 74 mm |
Product Features
| Family Description | DIN 6499 ER mini collet chucks with HSK DIN 69893 form A taper shanks | FamilyName | HSK A-ER-M(MINI) |
| COO | ISRAEL | BrandName | Taegutec |
Shipping Info
Weight per item
0.6850
Name
Collet Chucks
FamilyName
HSK A-ER-M(MINI)
BrandName
Taegutec
