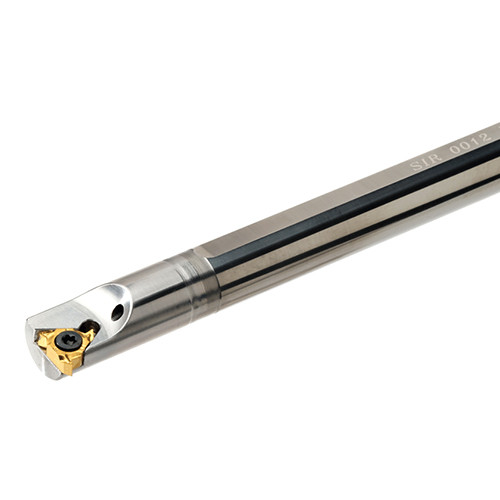

SIL 0012 P11CB
Solid Carbide Threading Bars for High Rigidity. (C-Carbide shank)
Price: Log in For Price

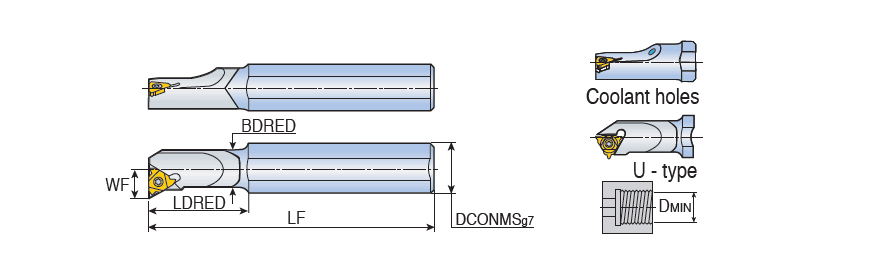

| Connection Diameter Machine Side (DCONMS) | 12 mm | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 15 mm | Usable Length (LU) | - |
| Overall Length (OAL) | 170 mm | Measurement Type | Metric |
| Application | | Internal Threading | | Unit | M |
| Insert to Shank Reference | 8.4 mm |
Product Features
| Family Description | Solid Carbide Threading Bars for High Rigidity. (C-Carbide shank) | FamilyName | SIR/L...CB |
| Remarks | For multi tooth inserts use anvils AI16M, AI22M, AI27M All Toolholders are made with 1.5 helix angle All carbide shank Toolholders are coolant through type | BrandName | Taegutec |
| COO | ISRAEL |
Shipping Info
Weight per item
0.2450
Name
Laydown Threading Indexable Holders
FamilyName
SIR/L...CB
BrandName
Taegutec
