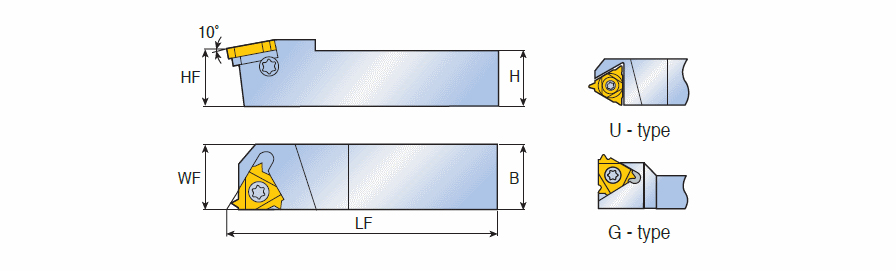

| Overall Length (OAL) | 170 mm | Insert to Shank Reference | 32 mm |
| Shank Height (H) | 32 mm | Body Material | Steel |
| Shank Width (B) | 32 mm | Measurement Type | Metric |
| Application | | External Threading | | Unit | M |
Product Features
| Family Description | External threading toolholders. | FamilyName | SER/L |

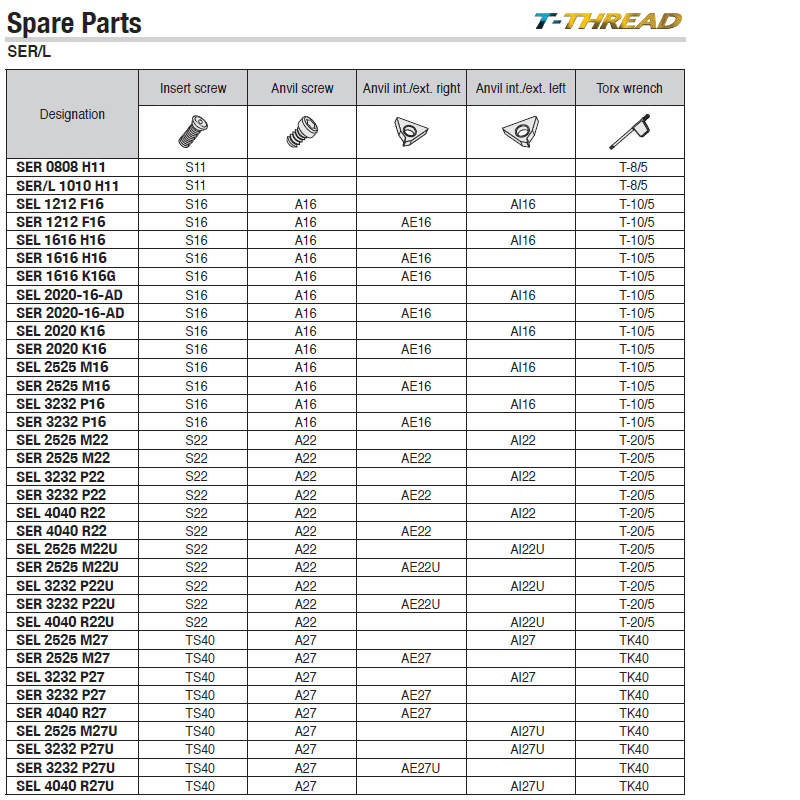

| Remarks | All Toolholders are made with 1.5 deg.helix angle For multi tooth inserts use anvils AE16M, AE22M, AE27M | BrandName | Taegutec |
| COO | ISRAEL |
Shipping Info
Weight per item
1.3550
Name
Laydown Threading Indexable Holders
FamilyName
SER/L
BrandName
Taegutec
Related Documentation
Related Items
