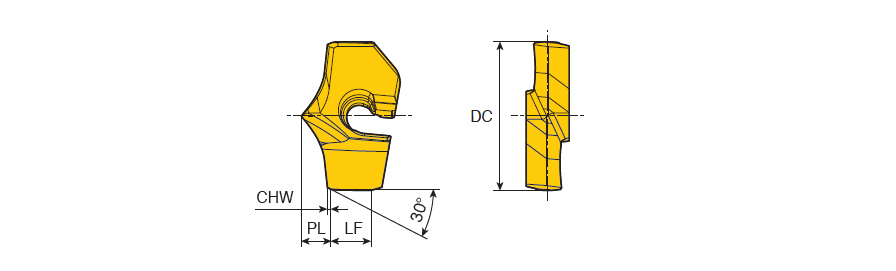

| Cutting Diameter (DC) | 34 mm | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Point Length (PL) | 6.53 mm |
| Application | | Drilling | Hole Making Inserts | | Coating | TiAlN+TiN |
| Grade | TT9080 | Corner Chamfer Width (CHW) | 0.86 mm |
| Insert Seat Size Code (SSC) | 34 | Body Material | Carbide |
| Functional Length (LF) | 8.24 mm | Unit | M |
| Cutting Edge Material | Carbide |
Product Features

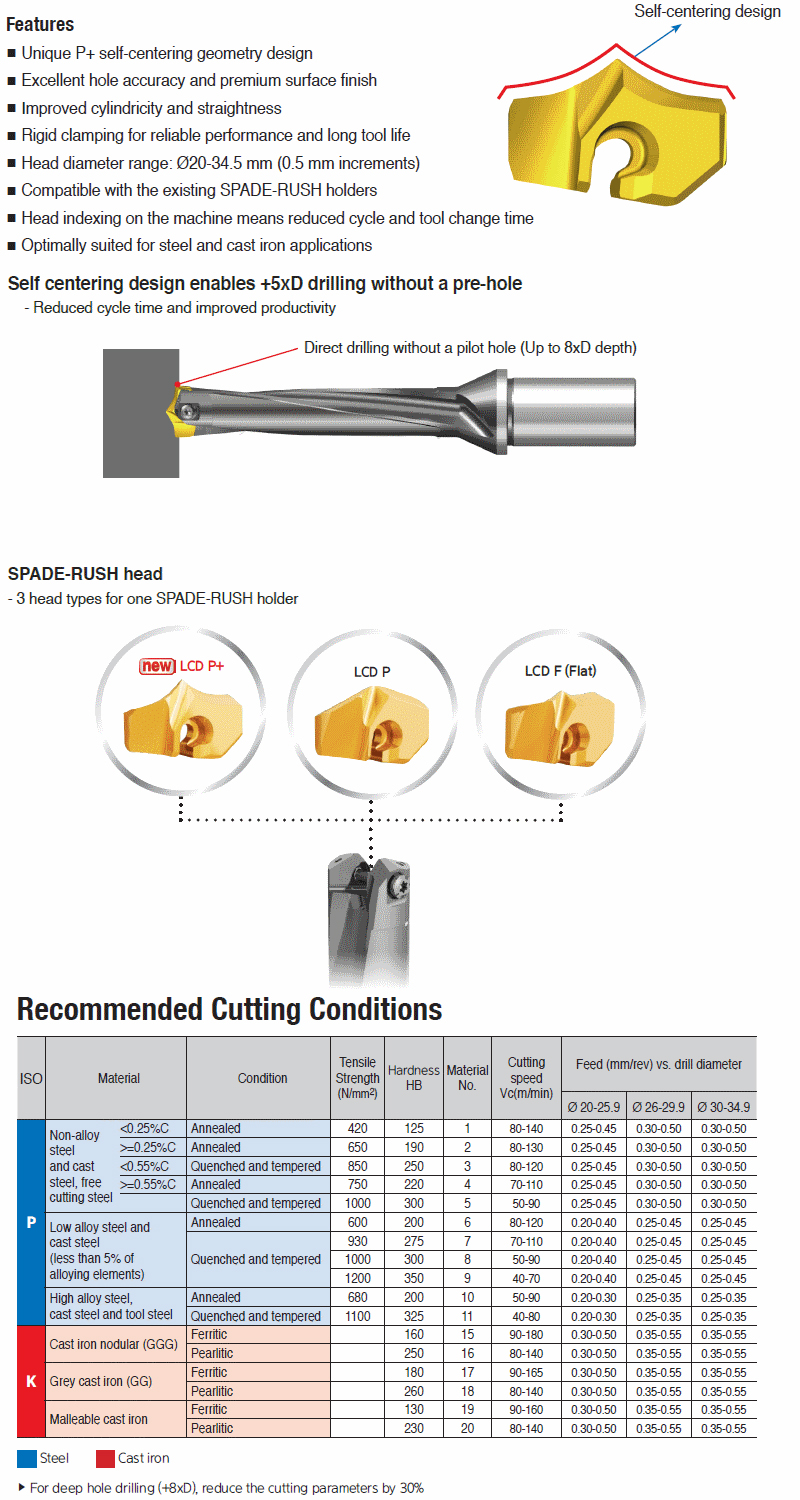

| Family Description | SPADERUSH Head changeable drilling inserts with Self-Centering for high productivity of large diameter | COO | S.KOREA |
Shipping Info
Weight per item
0.0535
