TCD-100-P+ TT9080

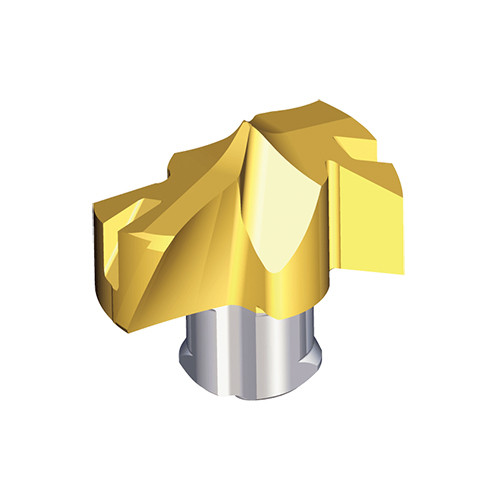

Exchangeable drill heads with self-centering for steels and cast irons
Price: Log in For Price

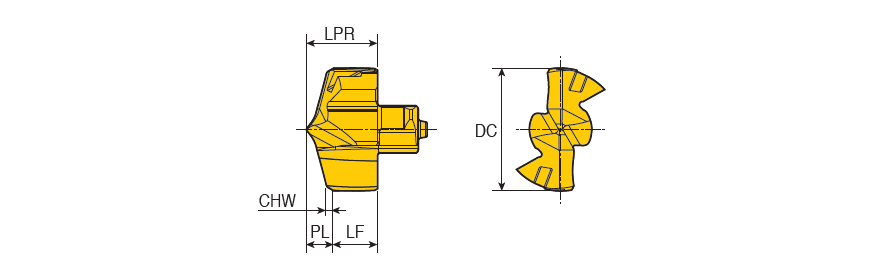

| Cutting Diameter (DC) | 10 mm | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Point Length (PL) | 2.33 mm |
| Application | | Drilling | Hole Making Inserts | | Point Angle (SIG) | 0 |
| Grade | TT9080 | Coating | TiAlN+TiN |
| Protruding Length (LPR) | 6.2 mm | Corner Chamfer Width (CHW) | 0.7 mm |
| Insert Seat Size Code (SSC) | 10 | Body Material | Carbide |
| Functional Length (LF) | 3.9 mm | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Exchangeable drill heads with self-centering for steels and cast irons | COO | S.KOREA |
Shipping Info
Weight per item
0.0140
