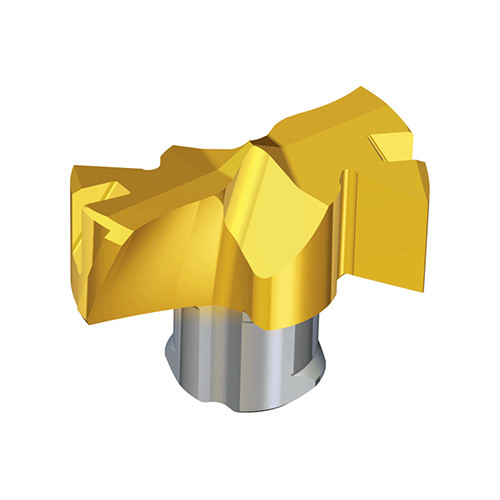

TCD-100-F TT9080
Exchangeable drill heads with flat bottom for all materials
Price: Log in For Price

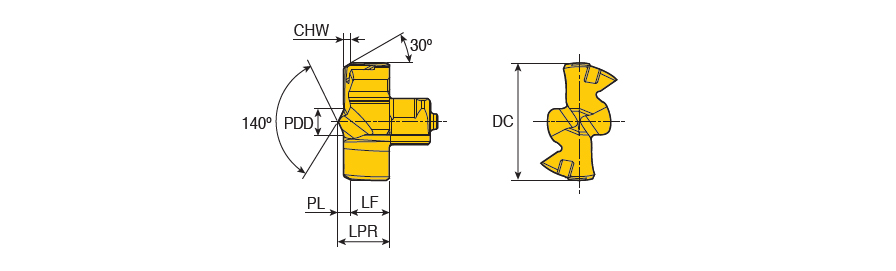

| Cutting Diameter (DC) | 10 mm | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Insert Thickness (S) | 4.4 mm |
| Application | | Drilling | Hole Making Inserts | | Point Length (PL) | 1.17 mm |
| Grade | TT9080 | Coating | TiAlN+TiN |
| Protruding Length (LPR) | 4.9 mm | Corner Chamfer Width (CHW) | 0.38 mm |
| Insert Seat Size Code (SSC) | 10 | Body Material | Carbide |
| Functional Length (LF) | 3.7 mm | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Exchangeable drill heads with flat bottom for all materials | COO | S.KOREA |
Shipping Info
Weight per item
0.0135
