TCD 160-169-20T3-3D

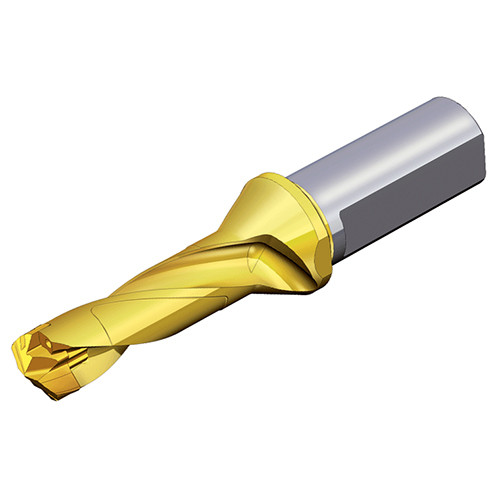

DRILLRUSH Head changeable drills with Weldon shank (3xD) and coolant holes
Price: Log in For Price

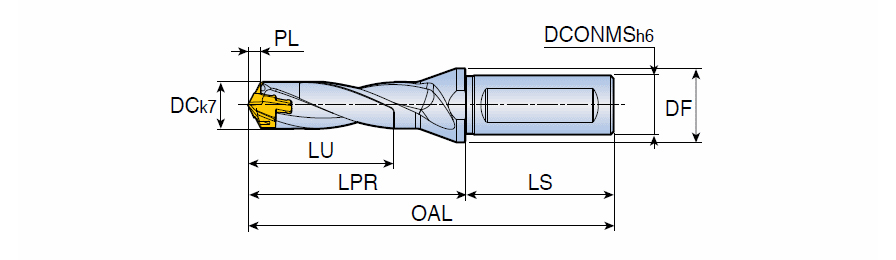

| Usable Length (LU) | 50 mm | Functional Length (LF) | 70.88 mm |
| Application | | Drilling | Tools for Swiss Machines | | Shank Length (LS) | 50 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Measurement Type | Metric |
| Cutting Diameter Minimum (DCN) | 16 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 16.9 mm | Unit | M |
Product Features
| Family Description | DRILLRUSH Head changeable drills with Weldon shank (3xD) and coolant holes | COO | S.KOREA |
Shipping Info
Weight per item
0.2200
