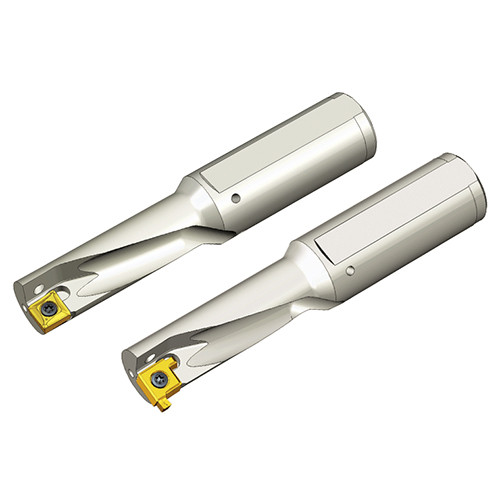

TCAP 10L-3.0DN-GV
Multifunction tools for drilling, boring, internal grooving and external turning & facing with maximum 3.0xD length & coolant hole
Price: Log in For Price

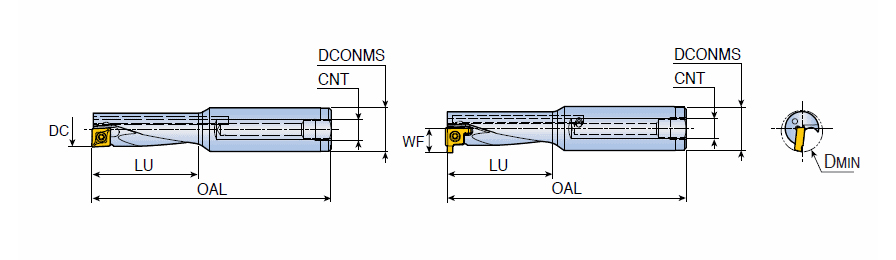

| Cutting Diameter (DC) | 10 mm | Cutting Diameter Minimum (DCN) | 12 mm |
| Usable Length (LU) | 30 mm | Measurement Type | Metric |
| Application | | Drilling Ext Face Int. Turning | Int. Groove & Turn | Int. Grooving | | Length Group | 3xD |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Body Material | Steel |
| Overall Length (OAL) | 85 mm | Unit | M |
| Connection Thread Size (Ts) | G 1/16 |
Product Features
| Family Description | Multifunction tools for drilling, boring, internal grooving and external turning & facing with maximum 3.0xD length & coolant hole | COO | S.KOREA |
Shipping Info
Weight per item
0.1200
