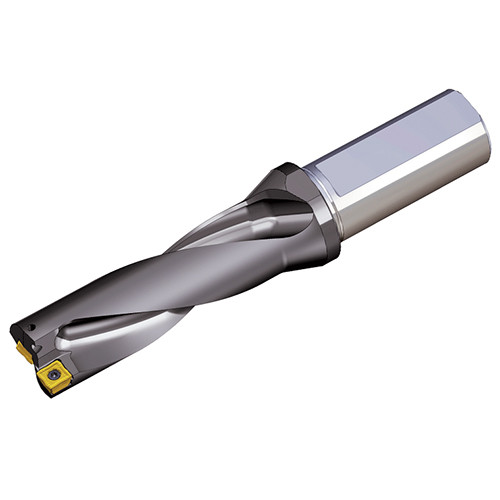

TOP 3145-20T2-05
Indexable drills with unique square inserts & coolant holes, drilling depth 3xD
Price: Log in For Price

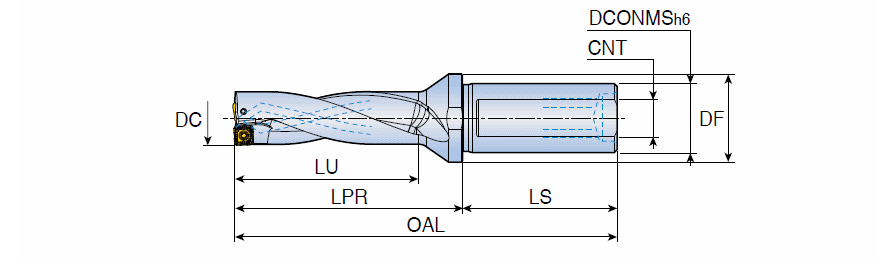

| Cutting Diameter (DC) | 14.5 mm | Overall Length (OAL) | 114 mm |
| Usable Length (LU) | 45 mm | Connection Thread Size (Ts) | M13X1.0 |
| Application | | Drilling | Tools for Swiss Machines | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Length Group | 3xD |
| Shank Length (LS) | 50 mm | Body Material | Steel |
| Functional Length (LF) | 64 mm | Unit | M |
Product Features
| Family Description | Indexable drills with unique square inserts & coolant holes, drilling depth 3xD | COO | S.KOREA |
Shipping Info
Weight per item
0.2100
