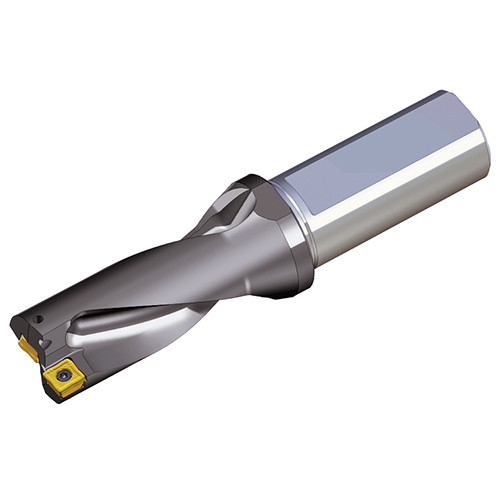

TOP 2220-25T2-07
Indexable drills with unique square inserts & coolant holes, drilling depth 2xD
Price: Log in For Price
| Cutting Diameter (DC) | 22 mm | Overall Length (OAL) | 123 mm |
| Usable Length (LU) | 44 mm | Connection Thread Size (Ts) | M16X1.5 |
| Application | | Drilling | Tools for Swiss Machines | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Length Group | 2xD |
| Shank Length (LS) | 56 mm | Body Material | Steel |
| Functional Length (LF) | 67 mm | Unit | M |
Product Features
| Family Description | Indexable drills with unique square inserts & coolant holes, drilling depth 2xD | COO | S.KOREA |
Shipping Info
Weight per item
0.3400
