TQS 20-3.00-1.50-R TT4430

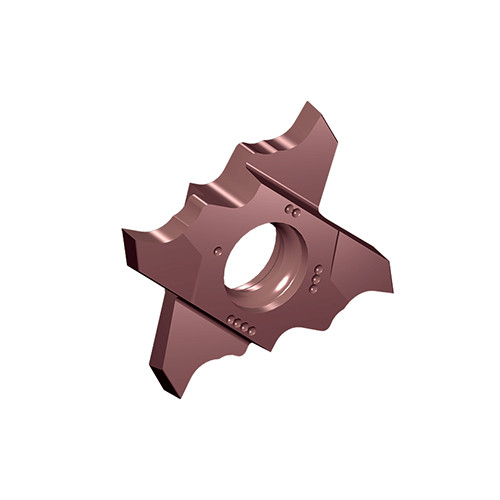

4 cutting edge inserts with high positive rake angle for parting, precise grooving and next to the shoulder machining in swiss turn
Price: Log in For Price
| Cutting Width (CW) | 3 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Inserts | Parting | Y Axis Groove Turn for Swiss | |
| Corner Radius (RE) | 1.5 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 5 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Multi AlTiCrN | Unit | M |
| Grade | TT4430 |
Product Features
| Family Description | 4 cutting edge inserts with high positive rake angle for parting, precise grooving and next to the shoulder machining in swiss turn | FamilyName | TQS 20-R/L |
| Remarks | For parting and grooving range, click on "More Info". | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0092
Name
Parting Off Indexable Inserts
FamilyName
TQS 20-R/L
BrandName
Taegutec
