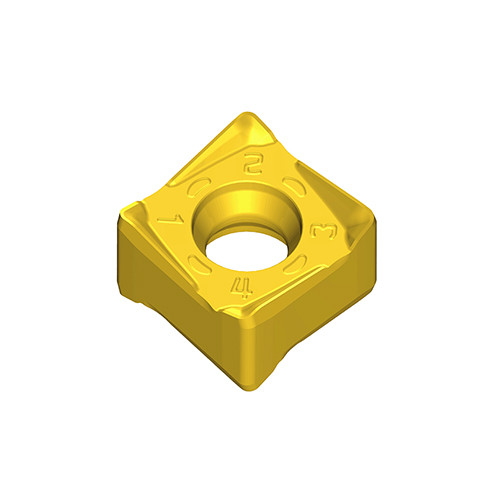

SQKU 120608 PNR-MP TT9080
Double-sided Square inserts with economical 8 cutting edges for 90° shoulder milling for general applications
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Application | | Facing | Inserts | Shouldering | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |

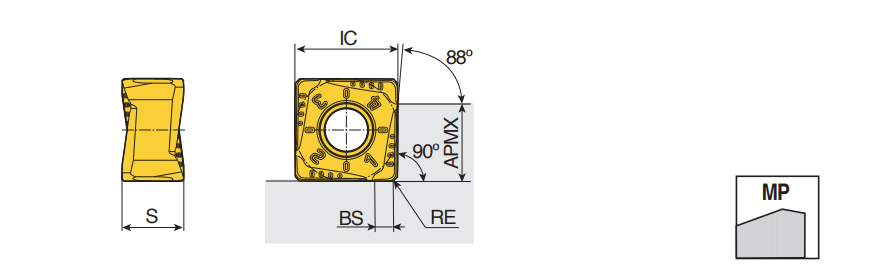

| Depth of Cut Maximum (APMX) | 6.5 mm | Number of Cutting Edges | 8 |
| Inscribed Circle Diameter (IC) | 12.2 mm | Measurement Type | Metric |
| Insert Thickness (S) | 8.06 mm | Body Material | Carbide |
| Coating | TiAlN+TiN | Unit | M |
| Grade | TT9080 |
Product Features
| Family Description | Double-sided Square inserts with economical 8 cutting edges for 90° shoulder milling for general applications | FamilyName | SQKU 12-PNR-MP |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0110
Name
Milling Indexable Inserts
FamilyName
SQKU 12-PNR-MP
BrandName
Taegutec
