SQKU 100408 PNR-M TT2510

Name: SQKU 100408 PNR-M TT2510
Brand: CHASE8MILL
SKU: TTK6256801
Price: 1185.00 INR
Availability: InStock

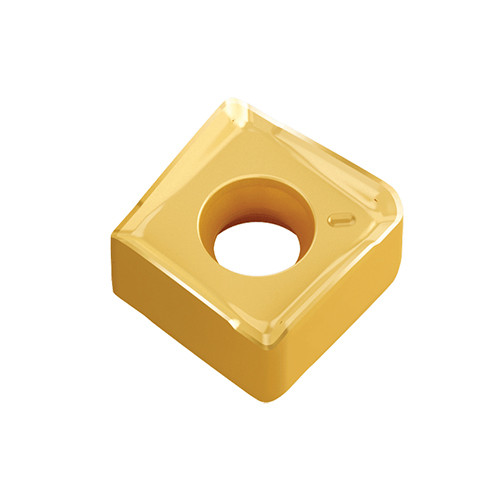

Double-sided Square inserts with 8 cutting edges for 90° shoulder milling & multistep machining without mismatch for general applications

Item # TTK6256801

Brand: Taegutec

Mfr#: 6256801

Applicable Material	\| Steel \| Hard Materials \|	Maximum Feed per Tooth (fz(max))	0.2 mm/tooth
Application	\| Facing \| Inserts \| Shouldering \| Slotting \|	Cutting Edge Material	Carbide
Corner Radius (RE)	0.8 mm	Minimum Feed per Tooth (fz(min))	0.1 mm/tooth
Depth of Cut Maximum (APMX)	5.5 mm	Number of Cutting Edges	8
Inscribed Circle Diameter (IC)	10 mm	Measurement Type	Metric
Insert Thickness (S)	5.8 mm	Body Material	Carbide
Coating	AlTiN	Unit	M
Grade	TT2510

Product Features

Family Description	Double-sided Square inserts with 8 cutting edges for 90° shoulder milling & multistep machining without mismatch for general applications	FamilyName	SQKU 10-PNR-M
COO	S.KOREA	BrandName	Taegutec

Weight per item

0.0062

Name

Milling Indexable Inserts

FamilyName

SQKU 10-PNR-M

BrandName

Taegutec
