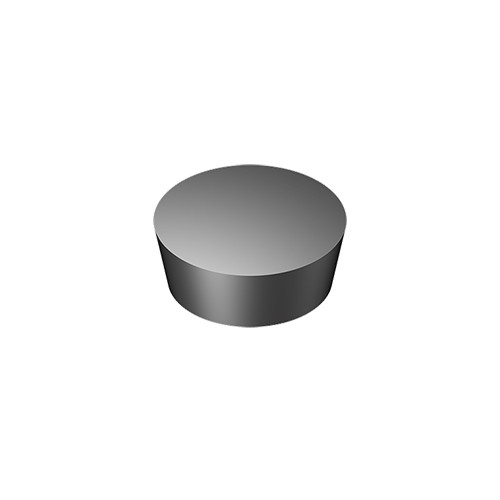

RPGN 0903 FL-E04 TC3030
Flat type positive round ceramic inserts for high speed milling of super alloys with low cutting force
Price: Log in For Price

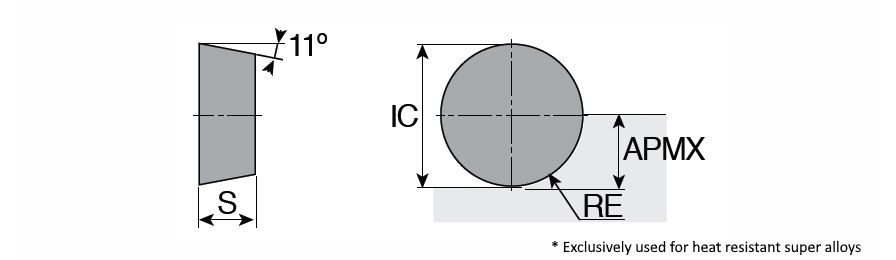

| Applicable Material | | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Application | | Facing | Helical Interpolation | Inserts | Profiling | Rampdown | | Cutting Edge Material | Ceramic |
| Corner Radius (RE) | 4.76 mm | Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
| Depth of Cut Maximum (APMX) | 1.5 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.52 mm | Body Material | Carbide |
| Insert Thickness (S) | 3.18 mm | Unit | M |
| Grade | TC3030 |
Product Features
| Family Description | Flat type positive round ceramic inserts for high speed milling of super alloys with low cutting force | FamilyName | RPGN 0903 FL |
| Remarks | Edge preparations E04: 0.04 0.05mm Honing | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0020
Name
Milling Indexable Inserts
FamilyName
RPGN 0903 FL
BrandName
Taegutec
