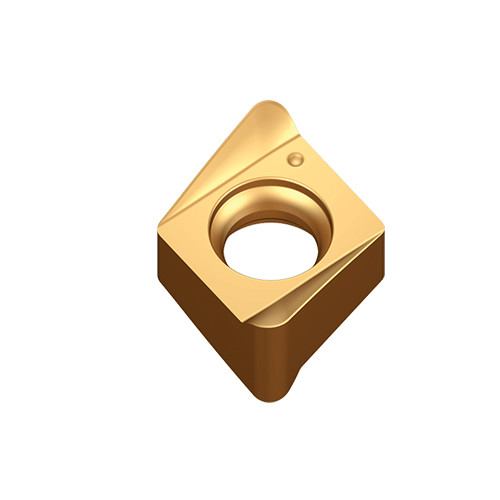

4NKT 060304R-ML TT9080

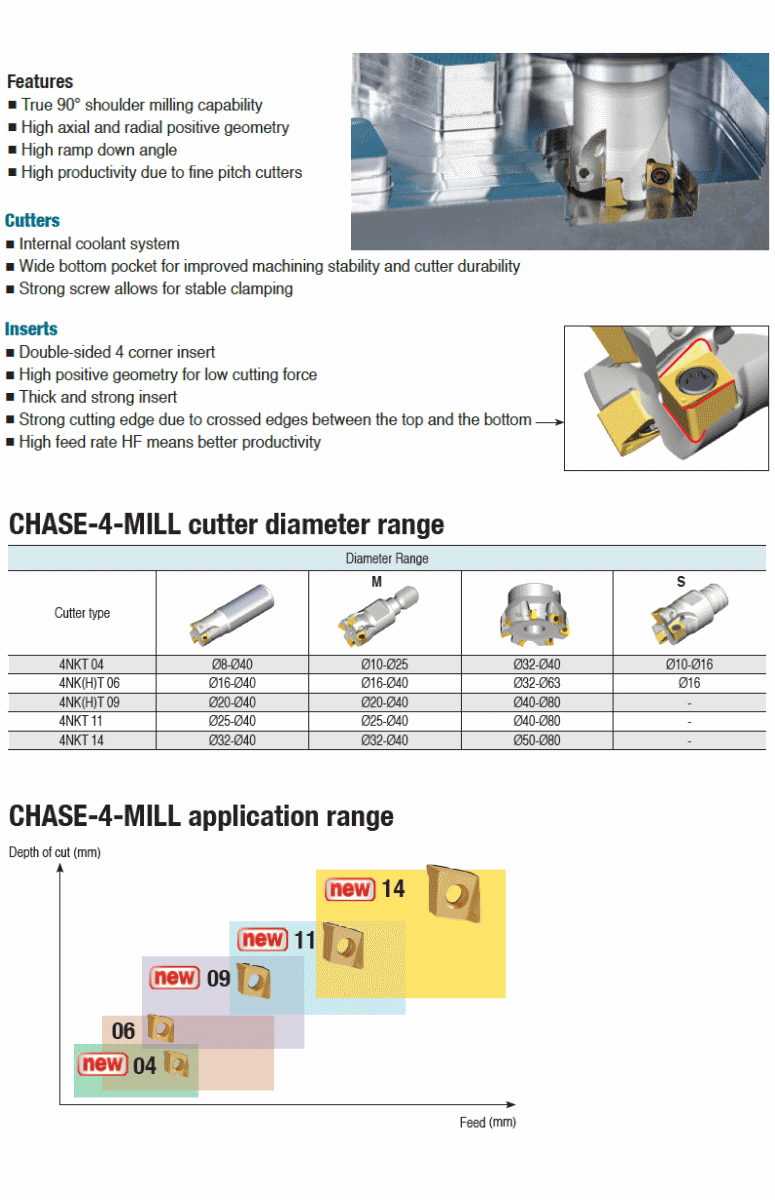

Double-sided inserts with four high positive helical cutting edges & high ramping capacity for 90° shoulders of stainless steel and light cutting
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Coating | TiAlN+TiN |
| Application | | Facing | Helical Interpolation | Inserts | Rampdown | Shouldering | Slotting | Step down machining | | Grade | TT9080 |

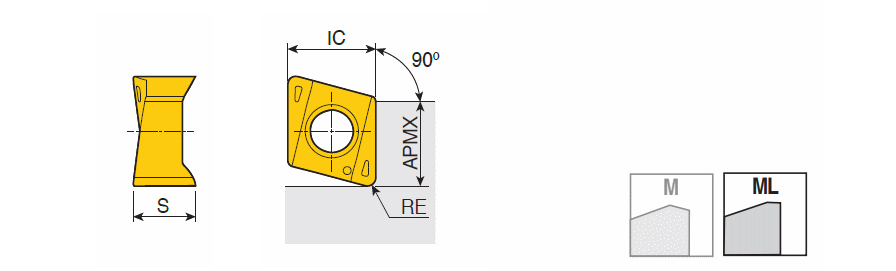

| Cutting Edge Length (L) | 6.2 mm | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Corner Radius (RE) | 0.4 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 5 mm | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Insert Width (W1) | 6.6 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 6.6 mm | Body Material | Carbide |
| Insert Thickness (S) | 4.82 mm | Unit | M |
Product Features
| Family Description | Double-sided inserts with four high positive helical cutting edges & high ramping capacity for 90° shoulders of stainless steel and light cutting | FamilyName | 4NKT 06-ML |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0030
Name
Milling Indexable Inserts
FamilyName
4NKT 06-ML
BrandName
Taegutec
