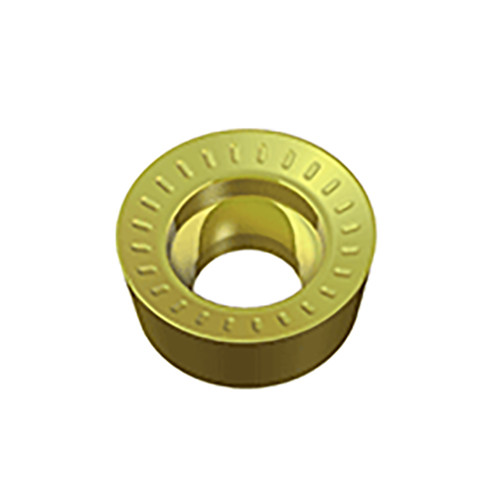

RYMX 1004-MM TT9080
Positive strong round inserts with sharp but strong cutting edges for stainless steels and difficult-to-cut materials
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | TT9080 |
| Application | | Facing | Helical Interpolation | Inserts | Profiling | Rampdown | | Maximum Feed per Tooth (fz(max)) | 0.35 mm/tooth |
| Cutting Edge Length (L) | 5 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 5 mm | Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
| Depth of Cut Maximum (APMX) | 4 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 10 mm | Body Material | Carbide |
| Insert Thickness (S) | 4 mm | Unit | M |
| Coating | TiAlN+TiN |
Product Features
| Family Description | Positive strong round inserts with sharp but strong cutting edges for stainless steels and difficult-to-cut materials | FamilyName | RYMX 08/10/12/16-MM |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0027
Name
Milling Indexable Inserts
FamilyName
RYMX 08/10/12/16-MM
BrandName
Taegutec
