SDMT 050204-M TT8080

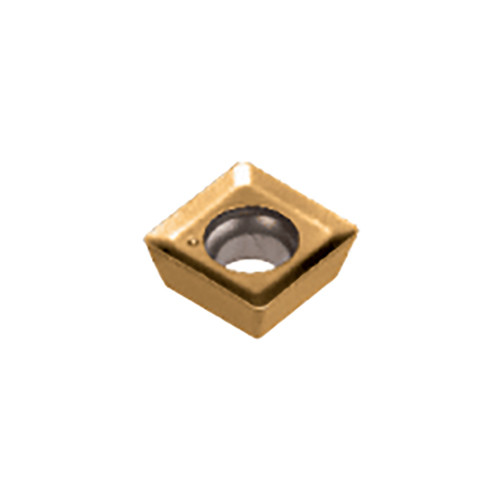

Positive square inserts with 4 cutting edges for small parts machining
Price: Log in For Price

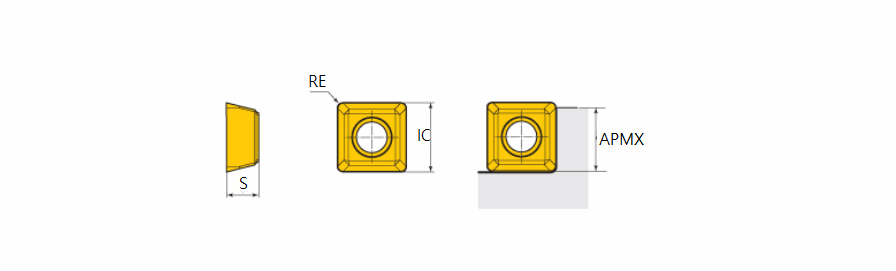

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | TT8080 |
| Application | | Facing | Inserts | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.06 mm/tooth |
| Cutting Edge Length (L) | 4.5 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.4 mm | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Depth of Cut Maximum (APMX) | 3.6 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 5.09 mm | Body Material | Carbide |
| Insert Thickness (S) | 2.38 mm | Unit | M |
| Coating | TiAlN+TiN |
Product Features
| Family Description | Positive square inserts with 4 cutting edges for small parts machining | FamilyName | SDMT 05-M |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0012
Name
Milling Indexable Inserts
FamilyName
SDMT 05-M
BrandName
Taegutec
