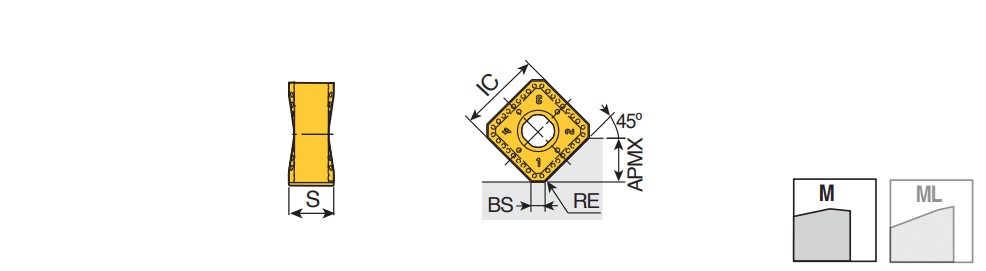

| Applicable Material | | Steel | Cast Iron | | Grade | TT7080 |
| Application | | Chamfer & Serration | Facing | Inserts | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Cutting Edge Length (L) | 7 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.4 mm | Minimum Feed per Tooth (fz(min)) | 0.13 mm/tooth |
| Depth of Cut Maximum (APMX) | 6 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 13.5 mm | Body Material | Carbide |
| Insert Thickness (S) | 6.8 mm | Unit | M |
| Coating | TiAlN+TiN |
Product Features

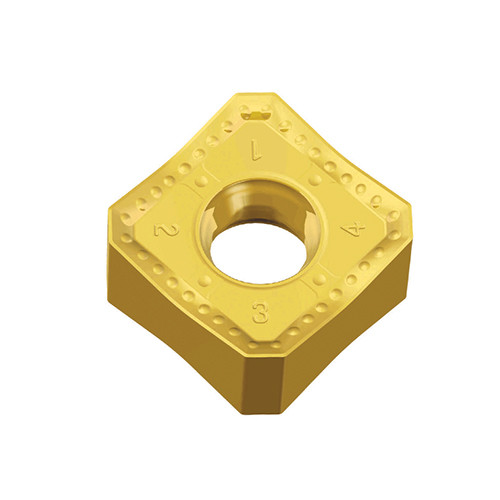

| Family Description | Double-sided square inserts with 8 cutting edges for 45 face mills and general applications from roughing to finishing | FamilyName | SNGX 1306 ANTN-M |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0116
Name
Milling Indexable Inserts
FamilyName
SNGX 1306 ANTN-M
BrandName
Taegutec
