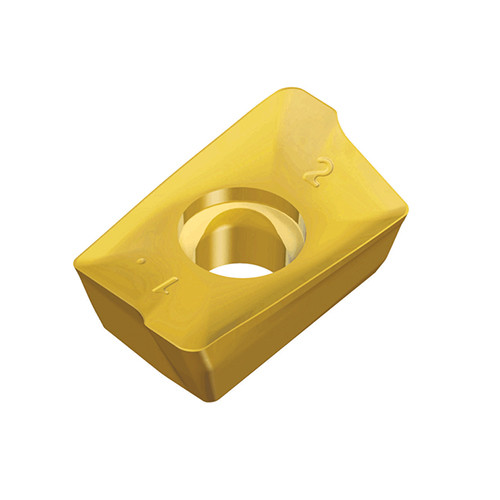

APKT 1204 PER-EML TT9080
High positive inserts with low cutting forces from sharp cutting edges of APKT 12 inserts for 90° shoulders
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | TT9080 |
| Application | | Facing | Helical Interpolation | Inserts | Rampdown | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.08 mm/tooth |
| Cutting Edge Length (L) | 14.6 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
| Depth of Cut Maximum (APMX) | 10 mm | Number of Cutting Edges | 2 |
| Insert Width (W1) | 8.3 mm | Measurement Type | Metric |
| Insert Thickness (S) | 4.73 mm | Body Material | Carbide |
| Coating | TiAlN+TiN | Unit | M |
Product Features
| Family Description | High positive inserts with low cutting forces from sharp cutting edges of APKT 12 inserts for 90° shoulders | FamilyName | APKT 1204 PER-EML |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0053
Name
Milling Indexable Inserts
FamilyName
APKT 1204 PER-EML
BrandName
Taegutec
