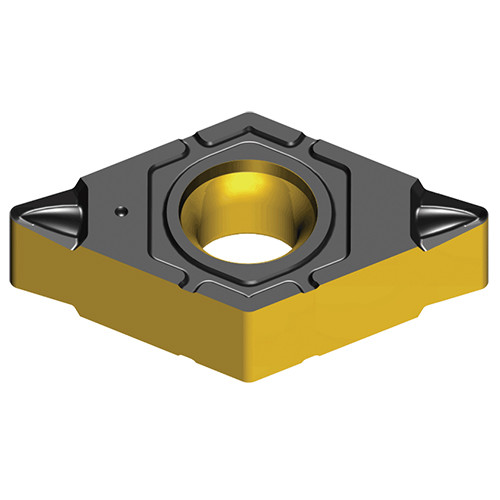

DNMX 080304 FGP TT5080
Mini size negative 55° Rhombic inserts for finishing to semi-finish machining of steels in small components at Swiss automatic lathes
Price: Log in For Price
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Grade | TT5080 |
| Application | | Ext 93° App 55°Diamond | Inserts | Int 100° App 70° Diamond | Int 93° App 55° Diamond | Tools for Swiss Machines | | Min D.O.C. | 0.3 mm |

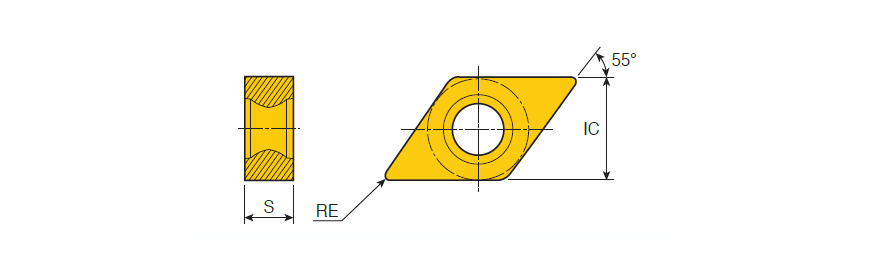

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 2 mm |
| Cutting Edge Length (L) | 8.55 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Thickness (S) | 3.18 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Inscribed Circle Diameter (IC) | 7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN+TiN | Unit | M |
Product Features
| Family Description | Mini size negative 55° Rhombic inserts for finishing to semi-finish machining of steels in small components at Swiss automatic lathes | FamilyName | DNMX-FGP 08 (RHINO-M) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0034
Name
Turning Indexable Inserts
FamilyName
DNMX-FGP 08 (RHINO-M)
BrandName
Taegutec
