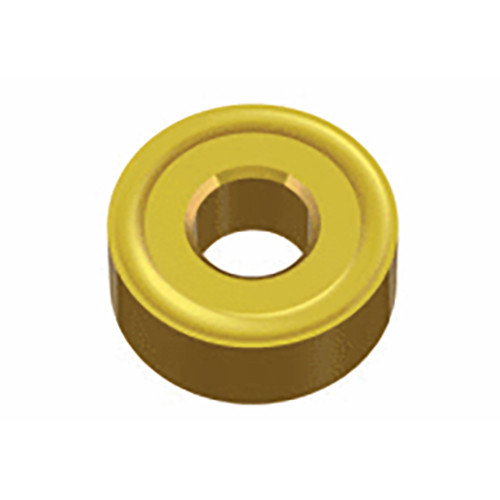

RNMG 120400 TT8125B
Negative round inserts for medium and medium-rough machining of steel and cast iron
Price: Log in For Price
| Applicable Material | | Steel | | Min D.O.C. | 2 mm |
| Application | | Ext Neutral Round | Ext Profile Round | Inserts | | Depth of Cut Maximum (APMX) | 5 mm |

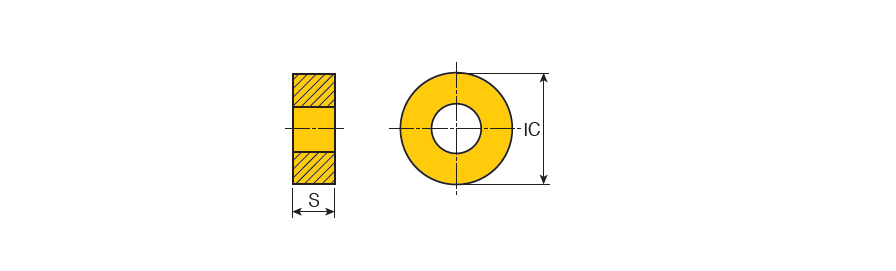

| Insert Thickness (S) | 4.76 mm | Min. Turning Feed (ft(min)) | 0.3 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Max. Turning Feed (ft(max)) | 0.6 mm/rev |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | TT8125B | Unit | M |
Product Features
| Family Description | Negative round inserts for medium and medium-rough machining of steel and cast iron | FamilyName | RNMG |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0081
Name
Turning Indexable Inserts
FamilyName
RNMG
BrandName
Taegutec
