CNMX 070308 FGP TT8115B

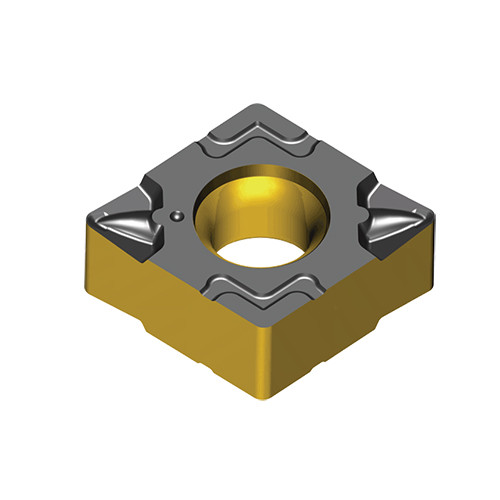

Mini size negative 80° Rhombic inserts for finishing to semi-finish machining of steels in small components at Swiss automatic lathes
Price: Log in For Price

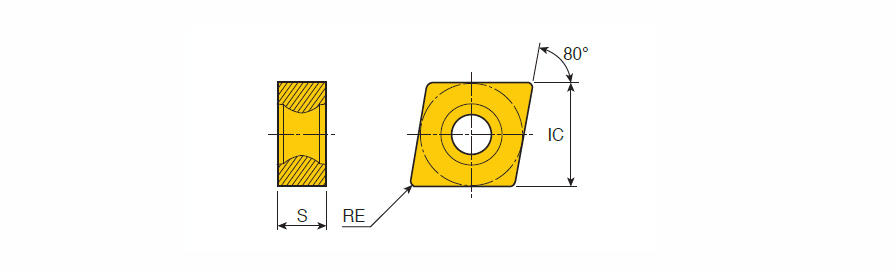

| Applicable Material | | Steel | | Grade | TT8115B |
| Application | | Ext 95° App 80°Diamond | Inserts | Int 95° App 80° Diamond | Tools for Swiss Machines | | Min D.O.C. | 0.4 mm |
| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 2 mm |
| Cutting Edge Length (L) | 7.11 mm | Min. Turning Feed (ft(min)) | 0.08 mm/rev |
| Insert Thickness (S) | 3.18 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Inscribed Circle Diameter (IC) | 7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
Product Features
| Family Description | Mini size negative 80° Rhombic inserts for finishing to semi-finish machining of steels in small components at Swiss automatic lathes | FamilyName | CNMX-FGP 07 (RHINO-M) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0034
Name
Turning Indexable Inserts
FamilyName
CNMX-FGP 07 (RHINO-M)
BrandName
Taegutec
