RPGN 120400 E TC3030

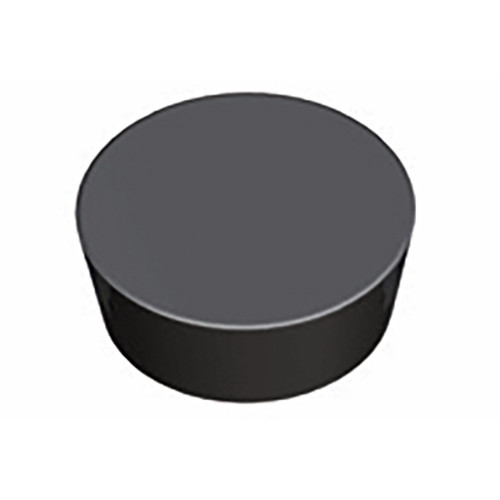

Positive Round ground Ceramic inserts without hole for high temperature alloys machining
Price: Log in For Price
| Applicable Material | | Super-Alloys / Titanium | | Depth of Cut Maximum (APMX) | 4 mm |
| Application | | Ext Neutral Round | Ext Profile Round | Inserts | | Min. Turning Feed (ft(min)) | 0.05 mm/rev |

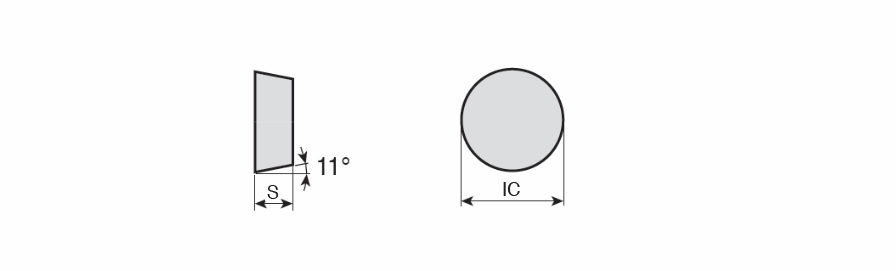

| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.35 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Ceramic | Body Material | Carbide |
| Grade | TC3030 | Unit | M |
| Min D.O.C. | 0.1 mm |
Product Features
| Family Description | Positive Round ground Ceramic inserts without hole for high temperature alloys machining | FamilyName | RPGN-CERAMIC |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0030
Name
Turning Indexable Inserts
FamilyName
RPGN-CERAMIC
BrandName
Taegutec
