TPMT 16T304 FA CT3000
Positive Triangular inserts for super-finishing of steels, stainless steel & exotic materials with excellent chip control and 11 clearance angle
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | CT3000 |
| Application | | Ext 91° App 60° Triangle | Inserts | Int 91° App 60° Triangle | | Min D.O.C. | 0.2 mm |

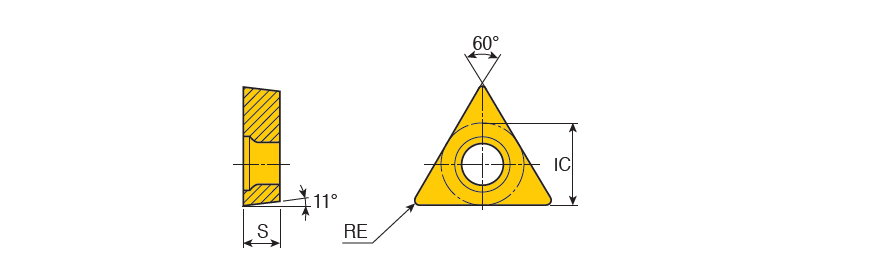

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 2 mm |
| Cutting Edge Length (L) | 11 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Thickness (S) | 3.97 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Cermet | Body Material | Carbide |
| Coating | Cermet | Unit | M |
Product Features
| Family Description | Positive Triangular inserts for super-finishing of steels, stainless steel & exotic materials with excellent chip control and 11 clearance angle | FamilyName | TPMT-FA |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0056
Name
Turning Indexable Inserts
FamilyName
TPMT-FA
BrandName
Taegutec
