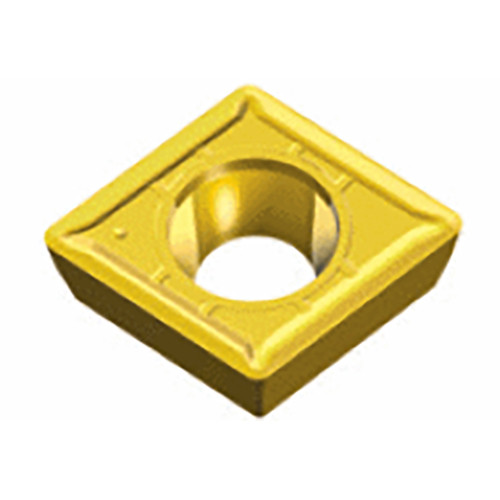

CPMT 060204 PC TT9215

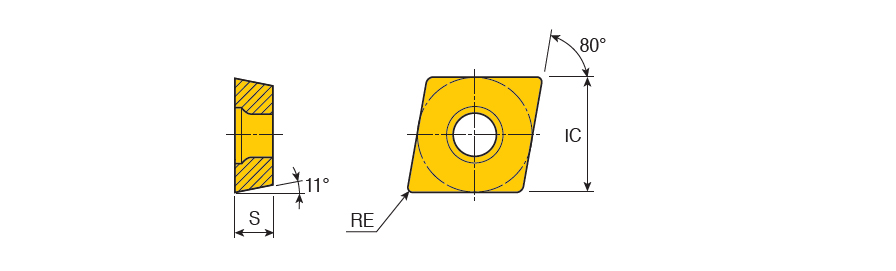

Positive 80° Rhombic inserts for medium applications of wide variety of materials with 11° clearance angle & low cutting force
Price: Log in For Price
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Grade | TT9215 |
| Application | | Inserts | Int 95° App 80° Diamond | | Min D.O.C. | 0.3 mm |
| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 2 mm |
| Cutting Edge Length (L) | 6.3 mm | Min. Turning Feed (ft(min)) | 0.06 mm/rev |
| Insert Thickness (S) | 2.38 mm | Max. Turning Feed (ft(max)) | 0.18 mm/rev |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al203+TiCN | Unit | M |
Product Features
| Family Description | Positive 80° Rhombic inserts for medium applications of wide variety of materials with 11° clearance angle & low cutting force | FamilyName | CPMT-PC |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0019
Name
Turning Indexable Inserts
FamilyName
CPMT-PC
BrandName
Taegutec
