TPGT 080202 L-FF TT9020

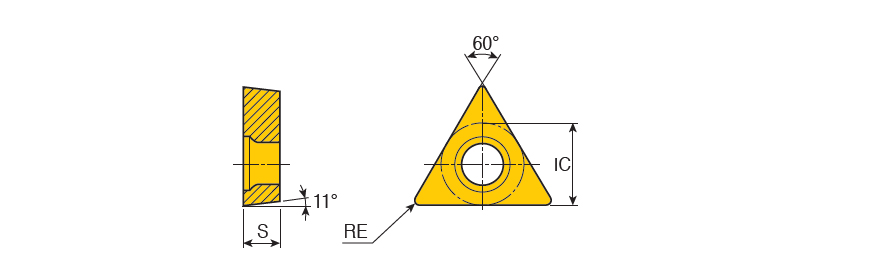

Positive ground 60° Triangular inserts with ground chip former for finish to medium machining of small components
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | | Grade | TT9020 |
| Application | | Ext 91° App 60° Triangle | Ext 93° App 60° Triangle | Inserts | Int 91° App 60° Triangle | | Min D.O.C. | 0.1 mm |
| Corner Radius (RE) | 0.2 mm | Depth of Cut Maximum (APMX) | 0.4 mm |
| Cutting Edge Length (L) | 0 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Insert Thickness (S) | 2.38 mm | Max. Turning Feed (ft(max)) | 0.15 mm/rev |
| Inscribed Circle Diameter (IC) | 4.76 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN | Unit | M |
Product Features
| Family Description | Positive ground 60° Triangular inserts with ground chip former for finish to medium machining of small components | FamilyName | TPGT R/L-FF |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0019
Name
Turning Indexable Inserts
FamilyName
TPGT R/L-FF
BrandName
Taegutec
