DNMG 150612 KT TT7015

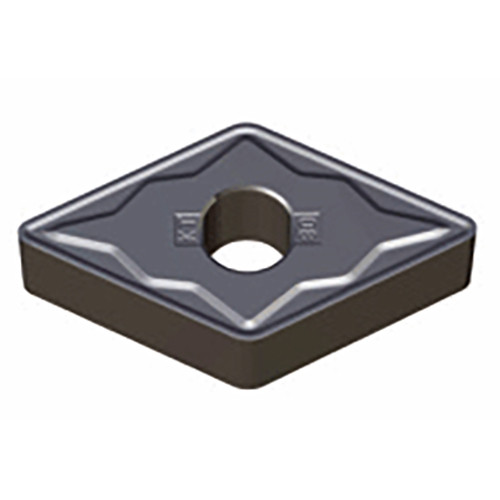

Negative 55° Rhombic inserts for roughing on cast irons and good tool life on interrupted conditions
Price: Log in For Price
| Applicable Material | | Cast Iron | | Grade | TT7015 |
| Application | | Ext 107.5° App 55° Diamond | Ext 62.5° App 55° Diamond | Ext 93° App 55°Diamond | Inserts | Int 100° App 70° Diamond | Int 107.5° App 55° Diamond | Int 93° App 55° Diamond | Int 93° App 70° Diamond | Int 93° App Back 55° Diamond | Int 95° App 55° Diamond | | Min D.O.C. | 0.5 mm |

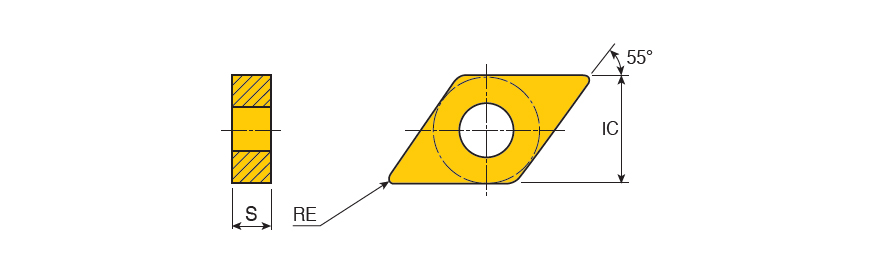

| Corner Radius (RE) | 1.2 mm | Depth of Cut Maximum (APMX) | 7 mm |
| Cutting Edge Length (L) | 15.5 mm | Min. Turning Feed (ft(min)) | 0.23 mm/rev |
| Insert Thickness (S) | 6.35 mm | Max. Turning Feed (ft(max)) | 0.63 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3 | Unit | M |
Product Features
| Family Description | Negative 55° Rhombic inserts for roughing on cast irons and good tool life on interrupted conditions | FamilyName | DNMG-KT |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0190
Name
Turning Indexable Inserts
FamilyName
DNMG-KT
BrandName
Taegutec
